How to build your own Above Unity Machine

  • Topic Is Sticky
  • 11K Views
  • Last Post 04 November 2023
Chris posted this 01 December 2018





You Will need:

  1. One Input Coil
  2. Two Output Coils
  3. Patience
  4. Support



You need to follow the basic plan laid out here:





NOTE: Partnered Output Coils can be wound either CW / CCW or CW / CW Flipped.

  • CW is Clockwise.
  • CCW is Counter Clockwise.



I prefer CW / CCW.

You will need to make sure your Output Coils have Opposing Magnetic Fields, thus Opposing Currents!



This is a Critical and Required Component!



The Operation to start with is as follows:

  1. Input Coil ( Green Coil ) brings up the Potential, then is switched Off.
  2. One Output Coil then Conducts Current ( Gold Coils ).
  3. The Second Output Coil then also conducts Current, a split second after the first, Equal and Opposite, to the First Output Coil ( Gold Coils ).



INPUT: Go for 2 Volts DC and around 320Hz or so, a Duty of around 10% or so. Slowly turn the Voltage up until you see things start to happen.

You will need to make sure the turns are greater on the Output Coils, per Coil by a factor of at least 1 : 3, so for every 1 turn on the Input Coil, you will need 3 Turns on the Output Coil and then that again for the Second Output Coil.

NOTE: Sometimes dropping a few turns on one Partnered Output Coil can be of benefit.

A small Gap between the Cored Partnered Output Coils to delay the Magnetic Field Mutual Coupling between the Coils. Circuitry can also be employed to delay Conduction on the second Partnered Output Coil.

Monitoring Currents in the Partnered Output Coils, you will see the Partnered Output Coils, like The Mr Preva Experiment, will Oppose, Magnetic Fields will Oppose! The Machine works because the Fields Buck, a Bucking Oscillator!

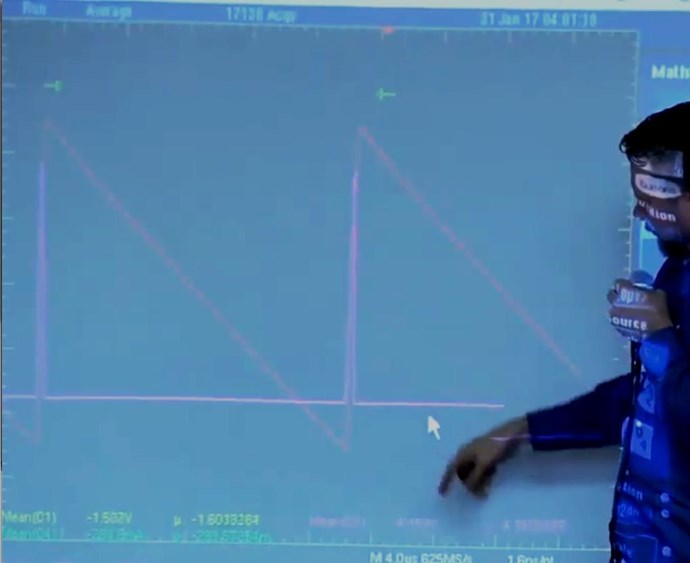

NOTE: When you have Bucking Output Coils, you will see a Sawtooth Waveform! Look for it, its the sign you need to see to know you're getting results.

Now, its up to you, arrangement, how you Construct it. I suggest Small Cheap and easy to work with!

On your Input Coil, perhaps use 12 turns 1mm wire or slightly larger. This means your Partnered Output Coils will be approximately 36 Turns each give or take.

NOTE: Don Smith suggested 1 : 4 Ratio.

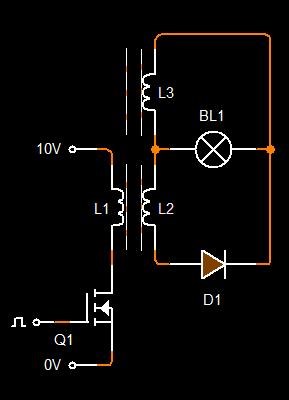

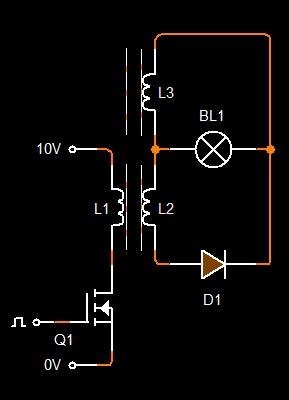

I have suggested a few Circuits already:





Of course, this is what I have found, and the Output Circuit is not limited to these Circuits specifically!

Look at the Independent Replications, for some inspiration:



  1. Bill Alek
  2. TinMan, Bradley Richard Atherton.
  3. Graham Gunderson.



Basic and up Front, No Bucking, then your machine does not work and you need to re-arrange your Machine.

This is an Asymmetrical Machine, all this I have covered here on my website. We have:

  1. Amplified Voltage. Turns Step up.
  2. Amplified Current. Bucking Magnetic Fields as in The Mr Preva Experiment.



For all we have covered, all of it, and if you've followed, then this task should be easy!

I Promise You, if you follow the rules, make your Machine do what I have said above and on my Websites, it will work. You will have an Above Unity Energy Machine! You have my word on it!

   Chris



NOTE: I expect you are experienced enough to competently work with Electrical Energy! This device can be dangerous, High Voltage and Current can very easily be achieved! I am not responsible for harm to person, and or equipment! I give you this very simple Guide as is and without warranty or guarantee. I have given a promise, and if you follow the instructions, this will work as I have stated! Making Changes will result in Failure.



Order By: Standard | Newest | Votes
Chris posted this 10 December 2018



Atti is right!

There is only one path forward! You must:

  • Set your Goal, know your objective.
  • Learn the base requirements.
  • Experiment and observe, ensuring your experiments are progressing toward your Goal.



Using the basic procedure above, in the first post, you will succeed. It does take some fiddling.

   Chris

alohalaoha posted this 11 December 2018

Hey Atti

Take one toroidal core for example from old pc power supply, which was used there as output choke. It is a big yellow ferrite.

Than make full bucking configuration like Mr.Preva did. Look from the aspect of cross-section of toroid. Wind two windings in opposite directions. It means one going from outer circumference of toroid through the toroid hole, while other going first from hole and end up on outer circumference.

Make it fully symmetrical with same number of both coil windings or if you like make asymmetrical. Then short both coils, add parallel resonant capacitor, two current sense resistors 1ohm or 0,1ohm (non inductive) and excite it with signal generator to catch parallel resonance. When you hit it, meassure RMS currents and voltages across both resistors. You will get the same like Mr.Preva have.

I can advice you to use litz wire for both windings. You should distinguish between 3 modes you could get.

1st. Partnered bucking effect.

2. Parametric resonance effect and

3. Acoustic resonance effect.

Our goal is to examine experimental conditions for obtaining 1st effect. According to experiments there is C.O.P = 37 or 3700% amplification of voltage and current. Both depend of lenght of coils or precisely lenght of wire wounded coils. Also if you use HF you need ferrite with low magnetic permeability, if low freq with high magnetic permeability. You can eaither pump the coils with the spark from your power supply or with mosfet or bipolar transistor. Anomaly bucking effect exist 100500%, only you need to catch it up. Also you may try with two air gaps in toroid to avoid satuaration of the core.

Best regards

Aloha



Chris posted this 11 December 2018

Hey Aloha,

From what I can see, you have it right. Have you built a working Machine?

   Chris

  • Liked by
  • ISLab
  • Augenblick
alohalaoha posted this 12 December 2018

Hey Chris

Still not yet. Squeezed like a wedge into wood with global sync of HV.

For you information we need 4 things.

1. HV (range betwen 3,5-7KV)

2. Partnered resonator

3. Multiplexed Partnered Output

and the most important

4. Sinchronization or timing. Lot of variables , hard to tune. This is the hardest part and mandatory.

Reg.

Aloha

  • Liked by
  • ISLab
  • Augenblick
Chris posted this 12 December 2018

Hey Aloha,



No, no, no, no, High Voltage ( HV ) is not a requirement!



In some machines, as little as 3 volts is all that's required!

The rest you have mostly right. Timing, we must have the Partnered Output Coils interact at the right Time. Remembering, we have the already known Magnetic Isolation at this time in the Cycle:





The Primary Coil see's no Negative effects from Lenz's Law, but only at the right time. Of course each Partnered Output Coil is its own Battery, Voltage is produced by the Input Coils Pulse, but Current is a function of Loading the Coils at the right time, the Opposition of Magnetic Fields increases the rate at which Current can flow to the load.

The following video shows some techniques for the timing:



Those that have been reading and following would already know all this.

I see, we are in for a work load of avoiding Confusion. We must, absolutely eliminate these statements that introduce elements of confusion for readers.



Aloha and others reading, I want to make a point of saying; Please do not make statements unless you are sure of the correctness of the statements!



Thank You,

   Chris

Atti posted this 12 December 2018

Hey Aloa, a schematic drawing would be good for avoiding misunderstandings. With my time, I'll do the experiment. Just for clarification.

What circuit should the COP 37 say? Can this video be seen from this measurement? Thanks.

Chris posted this 12 December 2018

My Friends,

On January 23, 2015, I gave an encounter with a Vacuum Cleaner:

About three years ago I got the Vacuum Cleaner out to do some Vacuuming around the house. (Yes I do it regularly )

I plugged it in, went to turn it on, and POP! I thought this was very strange!

Pulled the Cleaner down and tried to find what was going on. I found that one of the Field Coils had blown itself to bits, approximately 1 cm of wire gone. Minimal Burn Marks!

The Rotor was stuck in one position, it could move but not freely like normal!

With my work I was doing (Related topic) I could only come to one conclusion why this happened.

I believe that the same situation as we are looking at right now had presented itself in the Motor! Magnetic Field's Build, some in opposition, and because the Rotor was stuck, we got Max Fields!

On collapsing with the sine of the mains I believe this Magnetic field went to Max Current and as a result the wire could not handle this huge current and it blew to bits.

I have of course assumed that this was the situation! I have no proof that this is what happened.

So, the point of me posting this, is that we need to Maximise the Magnetic Field Interactions! Get the highest Magnetic Fields in the device that are possible.

Ref: Partnered Output Coils - Free Energy



June 19, 2015 Bradley Richard Atherton demonstrated exactly this, a Vacuum Cleaner motor using Partnered Output Coils producing excess energy.

Study closely the Coil Interactions, there in lays the secret.

   Chris

Atti posted this 12 December 2018

Hi. Some things have already been said here, like Mr Preva's experiment. Or the associated output coils. How are the currents there? Power and voltage products? Another additive to the flow of currents.

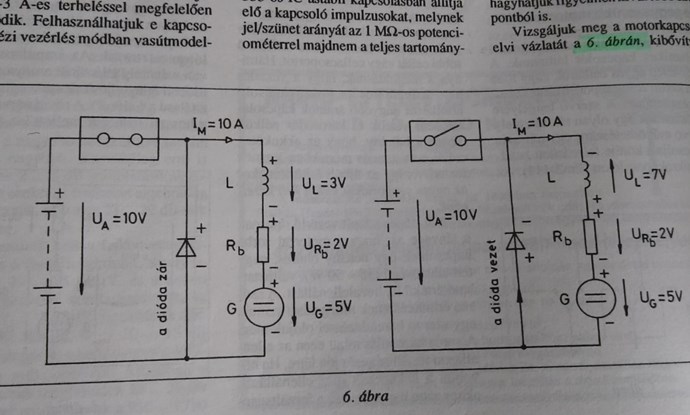

It can be seen that the current of the freewheeling diode of a D.C motor driven by PWM is possibly higher than the input current. Is this now extra energy? No! This is Mr Preva's circuit. But note it.

Vidura posted this 12 December 2018

Hi Atti, This is of course a normal behaviour for any Buckconverter, the currents on the freewheeling diode can exeed the input current by a mayor factor when the duty cycle is low, but also the voltage on the load dropping proportional, so there is no energy gains in this. But if we can use the increased current on this branch of the circuit to induce a MMF, by means of a feedback loop there could likely be a energy gain. Regards Vidura.

  • Liked by
  • ISLab
  • Augenblick
alohalaoha posted this 12 December 2018

Hey Aloha,

No, no, no, no, High Voltage ( HV ) is not a requirement!

In some machines, as little as 3 volts is all that's required!

The rest you have mostly right. Timing, we must have the Partnered Output Coils interact at the right Time. Remembering, we have the already known Magnetic Isolation at this time in the Cycle:

Thank You,

   Chris

Hey Chris

In my setup HV is one of main requirements, because i dont use mag.flux.routing technique to extract free energy from the ferrite.

You know Tesla's used HV, Don Smith, Edwin Gray, Stenly Mayer, Kapanadze, Akula, Roman Karnouhov, Nnail, Tiger2007, Lithuania 1KWt generator, Fabrice Andre, Joseph Newman etc etc.

On the other hand other devices based on ferrites or soft iron no need for HV. VTA Floyd Sweet, Markov transformer, Vladimir Pantuhov ferrite reactor, also Akula in his ferrite devices.

We must distinguish between these two classes FE devices, because they are using different principles, but in many cases there exist many interconnection points between. One is mandatory for both and that one is synchronisation of timings. This is kind of different processes "Glue".

If all is so simple how that nobody have (or have had) working free energy generator. I think everything is much complex as we have thought, on the first glance.

Regards

Aloha

alohalaoha posted this 12 December 2018

Hey Aloa, a schematic drawing would be good for avoiding misunderstandings. With my time, I'll do the experiment. Just for clarification.

What circuit should the COP 37 say? Can this video be seen from this measurement? Thanks.

Hey Atii

I have already posted here:

http://www.aboveunity.com/thread/let-s-sparking/

ps: Excitation could be with low or high voltages. Anomaly effect exist in both cases. You have all you need in the schematic.

Best regards

Aloha



Chris posted this 12 December 2018

Apologies Aloha,

I miss read.

   Chris

Vidura posted this 12 December 2018

Chris ,

you mentioned in this post the importance of getting the strongest possible magnetic field in our devices, I completely agree with that and want to remark the importance of the coils design for this purpose. Sometimes we want to make it easy , use small nr of turns for our coils, which sometimes might be correct, specially for HF applications, But regarding the Ampere turns and field strength it is good to keep in mind the following investigation results from Joseph Newman:

Quote from Patrik Kellys book:

Consider an air-cored coil with an interior diameter of 10 feet, a height of 8.32 feet and would with 1,000 feet
of 40-gauge copper wire. That length of wire has a resistance of 1,049 ohms and weighs 0.02993 pounds.
If 100 volts DC is connected across it, then a current of about 95 milliamps will flow, which is a power input of
9.5 watts. With just 31.8 turns, it will produce a weak magnetic field of 0,012 Gauss, with a mere 0.000014
Joules of energy stored in it. With a tiny inductance of just 0.003 Henries, if the current is stopped and the
ends of the coil shorted together, only an insignificant current would flow.
Now, repeat the experiment, but this time, use 5-gauge copper wire. As it has a resistance of 0.3133 ohms
per 1,000 foot length. To equal the same resistance and match the previous current flow, a massive length
of 3,348,000 feet needs to be used. This length of wire will weigh 335,469.6 pounds which is 16.77 tons.
The 10-foot interior diameter coil, 8.32 feet tall, wound with this wire will have about 90,000 turns. If 100
volts DC is now connected across the coil, the same 95 milliamp current will flow with an input power of 9.5
watts, the same as before. But due to the massively larger coil, it has a magnetic field of 23.7 Gauss, which
is 1,905 times larger than the previous coil, and with 116 Joules of energy stored in the magnetic field. This
is a phenomenal 8,000,000 times more energy than in the 40-gauge coil of the previous example. A
phenomenally larger current flow would now occur if the current input was stopped and the coil shorted out,
as that would generate an inductance of 25,700 Henries which is more than eight million times the
inductance of the previous coil.

The values in this comparison are extreme, but Joseph built then a prototype motor with "only about 2 tons " of copper and run a 600 pound PM rotor with 1.5 W of power consumption and a huge excess energy and strongest BEMF spikes.

The point I want to remark: we certainly will not be able to spend money in this amount of copper, but increasing the wiregauge and nr. of turns by a reasonable factor might increment the performance of our devices very notably.

Regards VIDURA.

Chris posted this 13 December 2018

Hey Vidura,

Yes, keep your machine small, easy to work with, keep the costs down while learning.

There is no need for huge field strengths like that, anywhere from 1 gauss to 1000 gauss should be more than enough. That is a very good example of how one can increase the Field, the Inductance.

   Chris

Atti posted this 13 December 2018

Aloha,if you say so, of course. But millions of times it is easier to say something or like to push than to show it. There is a difference between the two.

alohalaoha posted this 13 December 2018

Atti there are many methods to excite the Ether. But he always respond on our excitations at his own way.

As much as i examine Ether, i start to think about him, like some kind of living essence.

Absurd is in that, we are living in the infinite ocean of energy, while in same time we don't know nothing about. As a result we are stll warming our houses with wood, gas, oil, drivng our cars on petrol and spining around ourselves, like a dog trying to catch his own tail.

Aloha

Chris posted this 13 December 2018

My Friends,

Stick to the outline I laid out in the first post!

Don't let complication creep in! Simplicity:



Pay special attention to the Terminals of the Coil, Pay special attention to the Terminals of the Coil, Pay special attention to the Terminals of the Coil, this is where you learn.

Introduce one Coil at a time.

Focus on the Voltage and also the Current! Learn how Interactions between the Coils can increase quantity's, eg The Mr Preva Experiment.

In-front of you is your goal should you choose to learn and take on this task. Ignore all outside distractions, focus on the task at hand.

For you, another replication, back in 2011: Sergey Dobrozhansky

   Chris

alohalaoha posted this 13 December 2018

Thanks Chris for pointing us on this great experiment by Sergey Dobrozhansky.

https://sites.google.com/site/dobrojanskij/soobseniebezzagolovka-2

Chris this is amazing. He take out 840W (1200V, 07A) at output coil loalded with 30K 2Wt resistance, while his input have had only 20Wt. It is C.O.P = 42. And all of this with small toroidal ferrite.

He has wwo pairs of bucking partnered coils on a torodial core with magnetic permeablity 6000.

Low voltage direct current to alternating current with further high direct current output. All of this with small battery. This is how he has called his setup.

Two primary coils from 15-30 windings - optimal number of turns 16-20.

Two secondary coils each 10m long. Maximal lengh depend only of toroidal core size.

He also sais that his primary coils were in bucking configuration Picture had not drawn correctly. One primary should be CCW (from core's hole to outer circumference and other vice versa CW.

So he had 2 pairs of bucking coils in his HV generator. Output of two partnered secondary is very high 1200V, 700mA, with only 10m of wire each. This is extremely dangerous voltage and could rise in several KV if you plan to use higher magnetic permeability core. For example some with 100 000 permeability



Reg.

Aloha

Atti posted this 13 December 2018

Hey Aloha, I ask again. You made a statement on COP 37. Where do you see this measurement? Where is it proven?

  • Liked by
  • Augenblick
Zanzal posted this 13 December 2018

Chris this is amazing. He take out 840W (1200V, 07A) at output coil loalded with 30K 2Wt resistance, while his input have had only 20Wt. It is C.O.P = 42. And all of this with small toroidal ferrite.

Thank you for translating the important details Aloha, it looks too simple to be true, just the kind of thing I like investigating.

alohalaoha posted this 14 December 2018

Hey Aloha, I ask again. You made a statement on COP 37. Where do you see this measurement? Where is it proven?

HET ATTI.

HAVE BEEN PROVEN IN EXPERIMENT SEVERAL YEARS AGO.

Excitation pulse was 3KV in amplitude, pulse envelope monopolar, or gausian HV pulse, or sinx/x pulse. Output pulse was more 110KV , very near 111KV. I am talking about effective value of pulse amplitude not peak value. This worth only for one pulse comparison. Goal was to examine - does effect exist with HV pulsing. Our friend Chris was right. Experiments with partnered bucking coils are dangerous due to very high voltage generated in circuit. If you want to try just make a setup like i was drawing. Excitation 12V or 24V depend what you have in your lab. By the way effect exist also without ferrite core but output amplitude is much smaller with low voltage excitation

You can give a try or not. Everything is about your will.

Aloha

Chris posted this 14 December 2018

My Friends,

I would remind you, all the information you need is in the first post.

Following the instructions, with a little persistence, you will learn amazing things.

   Chris

Chris posted this 16 December 2018

My Friends,

In the thread: Energy Machine Operation I made a comparison to the human heart, the Energy Machine is a Pump. It is a Mechanical Pump and has similarity's to other mechanical pumps. The Hydraulic Ram Pump is one example.

The Magnetic Field is our Force Field, our Conductors, the Insulated Copper Wire, Artery's or Water Pipes.

We must think, as we saw in The Mr Preva Experiment, about the interactions between our Conductors, we must think about the pumping of Current.



In the specific case of positive charges moving to the right and negative charges to the left, the effect of both actions is positive charge moving to the right.

Current to the right is: I = da+ / dt + da- / dt.


Negative electrons flowing to the left contribute to the current flowing to the right.





You truly have the knowledge, you truly do! We have covered all here in our pages, everything is there. All that needs be done is applying this knowledge! In the first post of this thread, all the instructions are given.

I want to give you an example, but I don't want to confuse you, so please, use this information sparingly. Akula worked on several machines, in his schematic, the 30 Watt Lantern, he shows 15 Turns on the input Coil, 45 Turns on the Secondary Coil:







Akula in his 60 Watt Lantern shows, 12 Turns on the Input Coil, and 60 Turns on his Secondary Coil:







  • I1 = 15
  • S1 = 45
  • R1 = 1 : 3

  • I2 = 12
  • S2 = 60
  • R2 = 1 : 5

Akula's step up turns ratio, from the 30 watt lantern to the 60 watt lantern, was increased by a factor of two.

So, Akula was stepping up the Turns, in turn stepping up the Voltage! As a result, the Current also increasing as Ohms Law states: I = V / R, summing with the Voltage, remember Ohms Law: P = V x I





Because we have a PUMP, we have more instantaneous Power! We must have Magnetic Resonance, we are best to use a harmonic to excite this arrangement, 8% duty Cycle low frequency, approximately. Tune for the best result. Magnetic Resonance:

Kapanadze uses the exact same technique:







The answers you already have, focus on the Coils, the interactions, the Magnetic Resonance, the Voltage. Remember, a Pump!

   Chris

Vidura posted this 17 December 2018

My Friends,

Stick to the outline I laid out in the first post!

Don't let complication creep in! Simplicity:



Pay special attention to the Terminals of the Coil, Pay special attention to the Terminals of the Coil, Pay special attention to the Terminals of the Coil, this is where you learn.



Chris, the shape of the wire terminals should be important for the reflection of a longitudinal wave, a flat surface at 90° should give a strong reflection on the coil ends and produce a kind of Laser effect releasing more charge carriers in each reflection, if I am wrong please correct me. When I was working with teslacoils I could see the effects of different shapes of objects attached to the coil ends, and that longitudinal waves have a different behavor in propagation.

  • Liked by
  • ISLab
  • Augenblick
Chris posted this 20 December 2018

Hey Vidura,

Like anything, experiment proves points. The shape, the geometry, yeah a role is played, but the shape of the Copper Conductor, as long as it is coiled, a helix, then the shape is not all that important.

History proves standard coils with standard Copper conducting wire is all that's needed.

   Chris

Atti posted this 21 December 2018



Hi.

Árpád Bóday's device has given more energy when I loaded it in its own arrangement. This resulted in asymmetry within the transformer. Only then did the permanent magnet refuse to operate. But within the transformer columns, not only your partner output coil is located, but the Mr Preva layout too. (for easier understanding) Due to the two transformers, parametric excitation can be imagined.
So you can see that others have used these effects.
Even if they did not deliberately make it so. But that's just my speculation. One picture about it.

Partner output coil operation in this old device also justifies Cris's explanations. Just think about it:
-asimmetric operation
- voltage excitation without any effect

This coil detects the magnetic field generated by the telephone student. It's so weird
monk, I mean there are two coils (bottom and top) because they are knock-offs.
If it were just a coil, it would not only take the student's changing magnetic field,
but would be collected from the environment by all other electrical equipment
also a disturbance, which is mostly a knock.

  To eliminate the knock, two coils were queued
bound but contradictory beginning - ending.

With this solution, the remote network
the whirlwind is extinguished. Conversely, the "top coil is closer to the student of the phone"
so his sign is not extinguished by the reverse coil. Very neat!



http://oldradio.tesla.hu/szetszedtem/433kihangosito/cb55hoz.htm

Chris posted this 21 December 2018

Hey Atti,

This is a great example of what we are trying to present! It follows all the same basic outlines as you have pointed out!

Thanks for sharing!

   Chris

  • Liked by
  • Jagau
  • Augenblick
Chris posted this 27 December 2018

My Friends,

For those that don't already know this, another way of thinking about the Partnered Output Coils, how they work and interact together, is:



You can see, L1, your Input Coil is pulsed at Frequency and Duty Cycle X, which is a sub harmonic of the actual Magnetic Resonance, It has coupling to L2, but not L3. L1 is switched off. The Magnetic Field created now moves from X to zero. At the point of induced voltage of about 0.5 volts, the diode: D1 will conduct and the bulb BL 1 will light.

Now, importantly, the close proximity of L3 to L2 means the two coils will interact together. The two Coils buck, simply because their reactions together invoke Faraday's Law of Electromagnetic Induction. This geometry will add, the Current as we have already learned in The Mr Preva Experiment, will double the Current in L2, and gives us L2 + L3 Current in total, remember, Floyd Sweet told us the same thing:

In the specific case of positive charges moving to the right and negative charges to the left, the effect of both actions is positive charge moving to the right.

Current to the right is: I = da+ / dt + da- / dt.


Negative electrons flowing to the left contribute to the current flowing to the right.

These interactions on the Input cost us very little. A short sharp pulse brings up the Potential on L2. That's all that's needed, the potential to be bought up! Nothing else.

Then, the pumping action, the pressure, forces the Charged Particles as current down the Insulated Copper Conductor and out to the load.

Its not all that complicated, but a definite way of thinking is required! A clear mind is required.

   Chris

Chris posted this 27 December 2018

My Friends,

Some things should be burnt in, these words are the most important:

Don Smith 2006 Tesla Tech (17:42)

Ok this is, something which I have a patent on, it relates to getting a huge amount of energy out when you put a few milliamps of energy in, you end up with like a hundred kilowatts of Energy out.

That won’t make sense for someone who thinks of an electrical system, you have to think in terms of Magnetic Flux, because, if you’re using electrical flux, everything is dying a heat death and you lose the energy almost immediately, in electrical flux, but in magnetic Flux you can make as many copies of the original as you want, without depleting the original at all, so if you’re chasing electrical flux, you’re chasing the wrong rabbit, you need to be chasing magnetic flux.





You need to build it, make your path straight, if you want it!

   Chris

Chris posted this 28 December 2018

My Friends,

Something to keep in mind, Input power can be wasted and is often wasted, because the machine control is not quite as ideal as we may like.

The best example is in Brads Rotary Transformer. Remember, you need to catch the wave, Frequency and Duty Cycle is required to get the correct Subharmonic:





You can see, all the spikes in there, the spikes after the first peak at the top of the Sawtooth Waveform, all the spikes are wasted energy after the wave for has been caught. On the other side of the diode:





We see, the Sawtooth Waveform is not clean, its all over the place. We really need to aim for a clean evenly distributed Sawtooth Waveform. Graham Gunderson was one of the best I have seen:



Seen in red, the Sawtooth waveform is the Asymmetrical Regauging. We have covered this in some detail in my thread: Asymmetrical Regauging

This is Electrical Energy "Generation" at ZERO COST to your Input. It is entirely between the two output, the Partnered Output Coils.

   Chris

Atti posted this 28 December 2018

Chris and everyone else.



   (  Fix me if I'm wrong , criticism is not a problem





Everyone has seen this arrangement many times. Still, it doesn't matter how we do it.

A drawing helps a lot in understanding the theory.But we confess.
In practice, however, we can learn more than producing only theories.

Many years ago I did a similar experiment that Chris presented to us. The essence of this is that all four columns of the transformer had the same basic circuit diagram. The effect is very interesting.Just a detail of the wiring diagram.
I have implemented many other similar schematic diagrams.

All in all here.

http://www.vems.hu/freeenergy/pajert/index.htm?FoAblak=../pajert64/MEGKiserl_Attila.html

But what's the point!

The following video shows the following.

Practical implementation doesn't matter at all !!! It can be seen that at tight coupling, the increase in voltage or the decrease in current gives a different value than in the case of loose coupling. The value is completely different if it is controlled by H bridge. There is no significant drop in power there. The value is completely different if the added voltage or associated output coil is diode.

Has anyone else done similar measurements?

Chris posted this 28 December 2018

Hey Atti,

If I may suggest, go back and do The Mr Preva Experiment again.

I see you were using 50% Duty Cycle in your diagrams. You need to go back and follow the instructions. The Timing cycles are important and need to be followed! The description of how the Coils are excited - It is important to be followed!

Our Input is NOT the Source of our Output! Our Output is a "Generation", an Induction event! Not related to out Input. This was shown in The Mr Preva Experiment. Like I have said, our Input is for Potential Only.



A Transformer is very well engineered piece of electrical apparatus. We are not building a Transformer!



I apologize, my efforts to share, my efforts are great, but I grow wary.

   Chris

Atti posted this 28 December 2018

Hey Chris

I'll read it all right.

Please ask again. Has anyone already dealt with the layout? Could you share your experience?

Thanks.

Chris posted this 28 December 2018

Hi Atti, @All,

Yes, when people follow exactly, what I have laid out, the same exact instructions with "no improvements" from those that are not in the know, you will have an Above Unity Machine!

Some have had successes of varying different degrees.

   Chris

cd_sharp posted this 28 December 2018

Hey, friend,

Has anyone already dealt with the layout?

Not exactly, but if L3 would be reversed it would become very interesting. I add it to my todo list.

"It's just the knowledge of the coils and how they interact with each other" (Stephen Mark)

Zanzal posted this 28 December 2018

Please ask again. Has anyone already dealt with the layout? Could you share your experience?

I've already built my transformer according to Chris' specification, 20awg, 2x12 turn primaries (2 just in case I need to swap polarity), 2x36 turn secondaries. Armed with additional knowledge from my simulations I have on hand a slew of diodes I can switch between. In early testing with a Joule Thief configuration, I was able to elicit what I believe was a ferromagnetic resonance reaction my core. That's a good sign, but I know most ferromagnetic resonance reactions do not cause OU, but simply waste power while causing massive over voltages. Finding the island of stability can be challenging. I'll share what I find.



Jagau posted this 28 December 2018

I have no doubt in my mind that what Chris teaches is exactly what we have to do. It is up to us to develop from this concept.

You must not wait to have everything cooked in your mouth and simply copy the result.


I am a little surprised by your reactions, lets go at work. Magnetic resonance is what we have to work on, let the electric resonance drop.

I am making a very explicit video to prove what Chris taught me to do.
You will understand then that he was right.
Jagau

Chris posted this 29 December 2018



Chris

Jagau posted this 29 December 2018

Me too i have a lot of fun with logic

Jagau

  • Liked by
  • Chris
  • Augenblick
Atti posted this 29 December 2018

Thank you for your comment.

  • Liked by
  • Chris
  • Augenblick
Wistiti posted this 29 December 2018

Excellent !!😁

  • Liked by
  • Chris
  • Augenblick
fer123 posted this 08 January 2019

Hello to all I found this video Chris if is not appropriate remove please, I think It can help. Thanks.



Chris posted this 08 January 2019

Hi Fer123,

Excellent example! Yes, there is a component here that is the same! Andrey Melnichenko is one of my hero's! Remember what he went onto:



The last video is with Arthur Trankle from now Steho Energy showing the works of Andrey. Pin 5 on the 34063 IC is of very short Duty Cycle but many of them. this is in attempt to catch the wave.

   Chris

Chris posted this 08 January 2019

My Friends,

When building your Machines, remember you must account for a Inductive, Inductive Time Constant.

The Time it takes for the Bucking Fields to move from maximum value to zero is accounted for, the same as the Time it takes for the Magnet to fall through the Copper Tube:



Remember, what we are aiming for is exactly the same effect! Asymmetrical Regauging:









If you do not leave enough Time, after your Input Pulse, your Output Pulse will be insignificant, Asymmetrical Regauging, shown above requires a short On Time and a Long Off Time. You also must get your Timing correct so as to Catch the Wave down to Equilibrium or Zero. A Sawtooth Wave Form. Floyd Sweet showed a Sine Wave, but look how straight is sine edges were:

Ref: 25 : 51 - Floyd Sweet Secrets - Remastered - 13-06-2006 - 6.05 AM



Compared to a standard Sine Wave:





A visible round edge difference seen. The Straight edge shown in Floyd Sweets Scope Shot is the Asymmetrical Regauging. A DC Cycle each Half AC Sine Cycle.

   Chris

Vidura posted this 08 January 2019

A good point Chris, I have observed this waveform in some transformer tests, sometimes almost a triangular shape.

Jagau posted this 09 January 2019

Yes a very good point
Don Smith suggested this fact in one of his lectures in 1994,

we must have this kind of waveform


Jagau

alohalaoha posted this 09 January 2019

Hey Chris - check these new topics from Vyacheslav Gorchilin site

Slow drift magnetic waves in Partnered Coils Configuration

http://gorchilin.com/articles/coil/magnetic_wave?lang=en

and this one

2nd order magnetic wave resonance math in PC configuration

http://gorchilin.com/articles/coil/magnetic_wave_resonance

The Trure Partnered Asymetric Buck configuration

  1. Two coils conf., parallel winding
  2. Choke conf. - high voltage, low current
  3. Bifilar conf, - low voltage, high current
  4. Asymmetric Partnered Buck conf. - high voltage, high current. Remark. Coils need different wire lenght.!

Regards

Aloha

Vidura posted this 10 January 2019

The information from Gorchilin is very recomendable to read for understanding  of the magnetic resonance.

Regards Vidura.

mrblobby posted this 12 January 2019

Copied and saved to the 'aboveunity' folder on my laptop.

Chris posted this 12 January 2019

My Friends,

It is amazing how the world has changed in recent years!

Some years ago, this would have been laughed at, criticised, and disregarded. Now we know better! I am so proud of you all, and what we as a team, have, and are achieving! It is you that's actively changing the world!

Our Charge is Magnetic in Nature! Because it has an electric charge, this charge carries a Magnetic Field!





Each Ball Bearing / Magnet ( Cyan Ball ), can be made to move:



Remember, the Copper Wire, the Insulated Copper Wire must be bared on the ends to access the Charge! Insulation is not a fundamental instrument of "Generating" Energy.

Conductivity is!

The Insulation acts as a Guide, to direct your Charge that you have under pressure, to induce Velocity of the Charge.

Build your Pump my Friends! Show us how your pump is designed and we can compare!

   Chris

  • Liked by
  • Augenblick
We're Light Years Ahead!
Members Online:

No one online at the moment


What is a Scalar:

In physics, scalars are physical quantities that are unaffected by changes to a vector space basis. Scalars are often accompanied by units of measurement, as in "10 cm". Examples of scalar quantities are mass, distance, charge, volume, time, speed, and the magnitude of physical vectors in general.

You need to forget the Non-Sense that some spout with out knowing the actual Definition of the word Scalar! Some people talk absolute Bull Sh*t!

The pressure P in the formula P = pgh, pgh is a scalar that tells you the amount of this squashing force per unit area in a fluid.

A Scalar, having both direction and magnitude, can be anything! The Magnetic Field, a Charge moving, yet some Numb Nuts think it means Magic Science!

Message from God:

Hello my children. This is Yahweh, the one true Lord. You have found creation's secret. Now share it peacefully with the world.

Ref: Message from God written inside the Human Genome

God be in my head, and in my thinking.

God be in my eyes, and in my looking.

God be in my mouth, and in my speaking.

Oh, God be in my heart, and in my understanding.

Your Support:

More than anything else, your contributions to this forum are most important! We are trying to actively get all visitors involved, but we do only have a few main contributors, which are very much appreciated! If you would like to see more pages with more detailed experiments and answers, perhaps a contribution of another type maybe possible:

PayPal De-Platformed me!

They REFUSE to tell me why!

We now use Wise!

Donate
Use E-Mail: Chris at aboveunity.com

The content I am sharing is not only unique, but is changing the world as we know it! Please Support Us!

Thank You So Much!

Weeks High Earners:
The great Nikola Tesla:

Ere many generations pass, our machinery will be driven by a power obtainable at any point of the universe. This idea is not novel. Men have been led to it long ago by instinct or reason. It has been expressed in many ways, and in many places, in the history of old and new. We find it in the delightful myth of Antheus, who drives power from the earth; we find it among the subtle speculations of one of your splendid mathematicians, and in many hints and statements of thinkers of the present time. Throughout space there is energy. Is this energy static or kinetic? If static, our hopes are in vain; if kinetic - and this we know it is for certain - then it is a mere question of time when men will succeed in attaching their machinery to the very wheelwork of nature.

Experiments With Alternate Currents Of High Potential And High Frequency (February 1892).

Close
