Ourbobby posted this 13 June 2020

Hello,

I am putting this message into this Bucking coils thread, not being sure where else it can go. And, especially as I am looking to understand the Floyd Sweet contribution.

I have a standard pulse circuit into the basic bucking coil circuit. I am using a neon globe cross the primary coil which captures positive feedback. The coils are arranged as drawn, and with turns and gauge. I am showing diodes for taking off the load.

I get Outcome:

1) connect across positive going diode D1 and I get reasonable glow in globe;
2) connect across positive going diode D2 and I get very good glow from globe;
3) connect across Negative going diode D3 and I get outstanding white glow form glow:

When I connect globe across D3, the instant power is connected the globe has great purple/violet flash. After couple of minutes for bucking coils to settle, I get violet bursts in the neon and violent bursts of white light in the globes. However, if I substitute a higher wattage globe the whole effect becomes muted. Prolonged exposure to the D3 source will cause damage to the circuit, neon and or globes!!

What I am not understanding is the direction of the A Vector as it travels through the coils. Although, it does seem to me that the purple glow is the radiant energy that I might be looking for as the alternate energy source. Further, The pulse from the feed back through the neon, with a small load connected to D3 is showing 1kv output on the scope.

Comments would be appreciated.

Acknowledgement of Atti's original circuit.

Regards

ourbobby

Order By: Standard | Newest | Votes
alohalaoha posted this 16 August 2020

Hey all

I have removed all posts here to keep clean ourbooby's thread. Best when author moderate the topic.

Reg

Aloha



Chris posted this 16 August 2020

Hey Aloha,

No need to delete posts, we can move to a more general chat thread if you wish?

Best wishes, stay safe and well,

   Chris

Ourbobby posted this 25 August 2020

Hi Guys,

               Still waiting for some components to get cracking with my project. It seems, the Postal service has reduced its staff so that social distancing between workplaces and workers  is maintained. I had something arrive from overseas on the 11th of August. On Monday, 24th, I received a text to tell my it was being delivered that day. It has not arrived. Tracking indicates that there are some further measures in place for Covid security!

Best safe than sorry!

Will report back when I have something to show you all.

Regards

ourbobby



Augenblick posted this 25 August 2020

OB,

I am having the same experience with parts. I received some things nearly overnight from the west coast (U.S.), but China ... November sometime.

Several local packages just stalled in various places in the Midwest, and were never delivered. I had to cancel or reorder. Then one showed up very late without notice.

USPS says they desperately need drivers. One can imagine that the trucks are packed and just sitting in the lots now. Many drivers will not go into the 'hot' zones, especially at night.

Chinese parts prices are literally 10X from what they were a few years ago. At one time I could buy oscillator and buck converter circuits for $0.08 USD that would sell for over $10 USD in the States at the time.

I buy what I can locally from importers that charge 2X to 10X, but also set aside some direct-from-China 'risk' orders, for the long term.

Also, beware that there are a lot of Chinese knockoff semiconductors on eBay: relabeled generic (MOSFET) parts. I discovered  that one could get the same authentic parts from the original manufacturers for about the same price.

In the U.S., parts have been reliably shipped from S. Calif, Texas, New Jersey and Kentucky, to name some eBay venues I have shopped.

Be vigilant to be safe.

-A-

Ourbobby posted this 29 August 2020

Hi Augenblick,

                       I am on top of what you say. I think, a lot of Chinese vendors do not actually carry the stock they are advertising. It is only when they sell an item that they then go and get it from the source! Also, I think, from experience, a lot of semiconductors are either recovered or are rejects. I have had a lot of recent experience with bad mosfets that leads me to this conclusion.

@ Chris,

               Hi Chris, could you please point me to the small video clip that I have seen on one of the thread, which I cannot recall or locate, where Richard Feynman states the negative vector -B? is "only Interesting"! My son is interested in watching it.

regards

ourbobby

Chris posted this 29 August 2020

Hi Ourbobby,

Hmm, thought I had replied seems it was not successful, Sorry!

I am not sure, I had a quick look but nothing stood out.

Please use this link to search Google:  negative vector -B site:www.aboveunity.com

Try modifying the search criteria to help fine tune the results. If you PM Me with more description, I might be able to help further. I am not sure on the content you are looking for.

Best wishes, stay safe and well My Friend,

   Chris

  • Liked by
  • Augenblick
  • YoElMiCrO
Ourbobby posted this 31 August 2020

Hi Chris,

               It was only a brief clip, Sir richard, was briefly expressing his opinion about the negative vector and thought that this was "Interesting"!!!

I have been through where I thought I had seen it. I might have expressed my view of what I thought Feynman was stating to my son, who, being the perfectionist that he is(!), thought I might have got it wrong!

Regards

ourbobby







Chris posted this 31 August 2020

Hey Ourbobby,

This one?

not this one:

perhaps this one: @ 055

Best wishes, stay safe and well My Friend,

   Chris



Ourbobby posted this 05 September 2020

Hi Chris,

              It is not one of those. From memory, it was a short black and white clip. He was definitely talking about vectors. From which he made an inverse argument that proposed a negative vector. He found this to be "only interesting". No commitment there!. I was trying to explain this to one of my sons, who showed interest. Who also, thinks Sir Richard Feynman should have been given a title other that just Sir!!.

Anyway, it might pop up as I trawl through some of the posts.



Having a bit of trouble with the High Voltage wrap around my bifillar coils. Found out I had a shorting within one the winding on one of the  bifilar coils, close to the primary winding. Lost a few fets, spark straight through to earth! Have to wait until next week before I can get some more wire.

Thank you once again for looking for the Feynman clip.

Regards

ourbobby

Ourbobby posted this 21 September 2020



Hi Guys,
Still here! I am very busy trying to get my new house finished!. I use my small amount of spare time trying to understand what I am doing with the Flyod Sweet circuit.

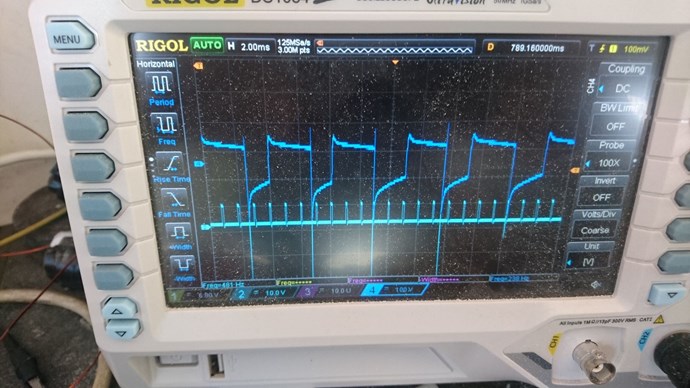

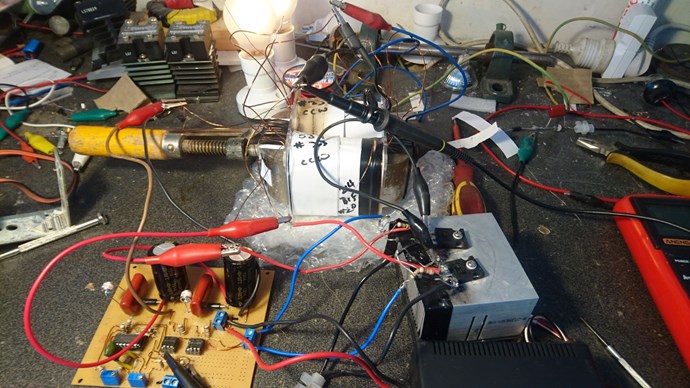

I have attached two photos to show where I am at. This is the best result I have acheived so far. Two globes at around 60% power. However if I cross this with a low wattage 12v 5 watt globe, the 12v globe takes over and I lose the large globes! Anyway, I have an AMCC 320 core. I have biflar wound 214 turns of #20 as secondary windings. I have wound two CCW primary windings #23 50 turns. Best response is low frequency, around 200hz, varies slightly. I am bucking these two secondaries together. I have the primary coils in joined in series and pulse these simultaneously via each input end and use centre back to positive. Voltages are 12v. I have set up two isolated input voltages. One for the mosfets and the other for the pwm circuit. I am using assr1511 optos, which are ss relays, to drive the mosfets. If I set the voltage to 24v for the mosfet output to the coils, they blow almost immediately. I have pulse set at 10%, and I am using GDT's for the earth return from the primaries. They show a purplish color when firing. So I get the idea I am on the correct track.

This is not a final outcome test project. I am looking at the best method to drive a similar set up with HV pulses.

The two photos, one layout in action, the other showing the output of the bucking coils and the corresponding regularity of the drive pulses. It seems to me that three of the pulses are wasted. However, if I reduce the pwm frequency I lose the output. One final observation. At 10% duty cycle, and low current, my mosfets are still progressively heating up.

Thats it for the moment. My next move is a couple of set-ups for HV.

Regards

ourbobby.







Chris posted this 21 September 2020

Hey Ourbobby,

Nice Work! Thanks for sharing! You're on the right track! Study Coil and Interactions and work to improve on this.

An External magnetic Field influences the Electron (tiny magnet) in the Conductor in the region of this Magnetic Field.

Study these very same effects in the "Generator" or the Conventional Transformer. There is always Symmetry from Rotor to Stator, or Primary to Secondary! There does not need to be!

Thanks for Sharing!

Best wishes, stay safe and well My Friend,

   Chris

Ourbobby posted this 22 September 2020

Hi Chris,

              Thanks for the reply. I failed to mention the improvement to the output od the winding on the core itself. At 12v the slight increase in output was noticeable.

regards

ourbobby



Ourbobby posted this 04 October 2020

Hi guys,

             Latest update! Have the ground capacitor working. Very noisy. However, my multi-bank capacitor is giving me lots of trouble. I am using 1kv metallised caps, and i am constantly having to replace one or two after running a test for a few minutes. This is the charge capacitor, which is pulsing through a GDT through the HV coil across the FLoyd Sweet experiment to the earth cap. Have been unable to prove anything, other than my earth capacitor is working! Maybe I shall have to build a mica capacitor and immerse it in epoxy.

Just an update, regards



Oubobby



Ourbobby posted this 15 October 2020

Hi guys,
Just surfacing again. Waiting for stuff to be delivered. Seems to take an eternity just to get things delivered, even locally! In the meantime I have been going back through some of my early investigations. One of which is Karl Schappeller! I have come to the conclusion that his Sphere device has a lot in common with what we are looking at in this forum. In the The Physics of the Primary state of Matter book by Cyril Davson, discussing the Schappeller Sphere, often used is the term " two likes in unlike situaation". This has always confounded me, looking for the "two likes" was the difficult part. It is towards the end of the book where the analogy to Tesla's Magnifying transmitter is made. And, Schappeller's belief that the transmitter action is wrong, to make it work it has to be inverted. Thanks to the information on this forum I now understand (eventually) what he meant. It is what Flyod Sweet recognised and what is shown with the clashing waves video image. The Class of the Titans! Magnified energy!

Just thought I would pass that tidbit along in the event that some other poor soul, reading this thread, who has also struggled to understand some of Schappeller's concepts, can take heart that there is a solution to Schappeller's Sphere, if not exactly as Davson explains.

Regards



  • Liked by
  • Atti
  • Chris
Ourbobby posted this 31 October 2020

Hi Guys,
I have had some spare time this weekend to look at some testing. I have an AMCC 100 onto which I have wound at either end 300 turns of 0.25mm wire. Tjhis is for magnetic flux. The two cores I have wound 210 turns bifilar coi ls. So I am getting good response at 27KHz or thereabouts. i attach a photo of the output. This also will light one of the LED 240v globes. The operation is reassuring!

However, I wind 6 turns of heavy duty wire around the two cores, I set up Mazilli and capacitor and spark gap. I am not concerned with resonanc. I only wish to see any output and influence of flux pulsing. But, I get exactly zero response from the HV coil to the bifilar coils. I am a bit puzzled. I then reconnect the bifilar coils as series connected. No difference. Still no transfer of flux from HV coil to series coils. I would have expected the HV coils to interact with the bifilar coils.

Perhaps someone might be able to offer so insight to my results? Here is a photo of the flux pulse output only. Yellox is magnetic pick up at core. Blue is flux at close to resonance with bifilar coils.

Regards

ourbobby

Ourbobby posted this 26 December 2020

Hi guys,

             Have had a couple of days to work on my thoughts! I think I get what is not literally stated, say with Don Smiths primary coils and also the tweeking of the coils for the "Clash of the Titans" using POC's. Took a bit of time and looking for a solution. I had made the mistake of using a pulse as a driver. Wrong! Let the input become the driver!!

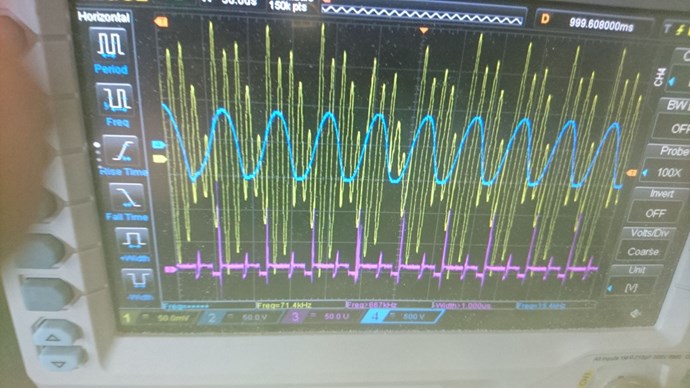

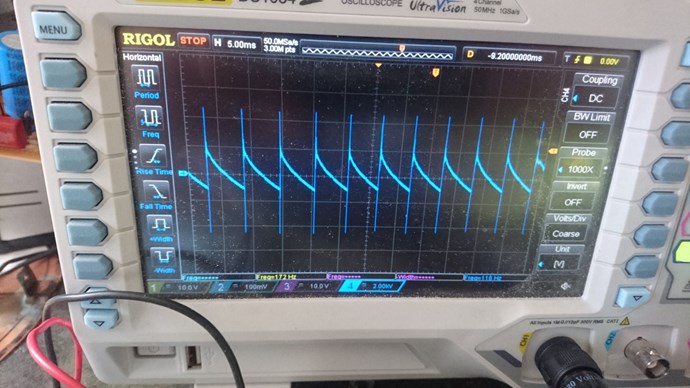

Here are a couple of photos. One is the triangle sought. The other is a simple voltage and current regulator boost I got on ebay. quicker than doing the homework when I have very little available time at the moment. Input watts increase with ohms law as I raise the voltage, holding the current stable. Well there is a bit of drift, but, for a few dollars it has proven my thoughts.

Anyway, Christmas day here. Merry Christmas to you all!! And, a successful New Year!!

Regards

Ourbobby.





Chris posted this 26 December 2020

Hi OurBobby,

Thank You for Sharing!

I have to honest, sorry, your waveform is still not right. You're on the Flyback side of the Cycle, not on the "Generating" side of the Cycle. You're getting closer! Follow the videos I have shared, follow the specifics given.



The Ramp up on the beginning of the waveform is a tell tail sign of the correct interactions, that are required for excess Energy "Generation".



Thank You for sharing! You are getting closer!

Best Wishes,

   Chris

  • Liked by
  • cd_sharp
  • Vidura
Ourbobby posted this 05 January 2021

Hi Chris,

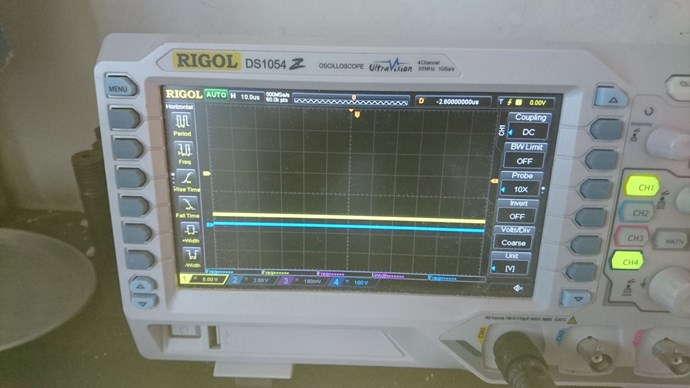

              Gets tricky looking for the wave form! Anyway, to get a better understanding of the "vectors" I have been looking at the MrPreva setup. Here are a few photos showing my results. I must admit I am only using one pulse input and not ac input. Also I am taking the output across the coils. I have two coils CW and CCW 75 turns on each connected together. The input is just a basic pulse. I have the load in parallel with the joined coils. I can modulate the input to manipulate the wave form and adjust the output across the load- two globes in parallel. One is a small 12 v 125ma, the other is a 12 volt 50 watt globe. Although the photos indicate full bright ness, I reckon I am getting only about half plus brightness. Globes are hot to touch. The confusing aspects for me to explain are the very low wattage input to the test and the zero scope waveform output for this level of load output. The poor reading of the input is 10.3 volts and 0.85watts

Regards

ourbobby





Chris posted this 05 January 2021

Hi Ourbobby,

I see no waveform? Just DC?

Best Wishes,

   Chris

Ourbobby posted this 05 January 2021

Hi Chris,

               That's exactly the issue. I lose the waveform as the globe brightens and the input wattage decreases. I have also tried this set up with coils that have a greater number of turns, 300 for example. However, the wave form decreases but not to this extent. And, I can run two 12v 50w globes! I shall try a larger wind to clarify this. Will take a few days to wind!

regards

ourbobby



  • Liked by
  • Vidura
Ourbobby posted this 06 January 2021

Hi guys,
Just an update on my last post. My second test confirms the procedure of my first test. This was a simple set-up to allow me to study the effects with various coil configurations. I am not sure why the waveforms disappears and the scope flatlines!. It possibly has something to do with the set-up being at it's tuned resonance. The output from the 300 turn coils certainly exceeds the outcome from the 75 turn coils. For an input of 87.5mw I am getting approximately an increase of power of 1 to 450. the output to the 50w globe is very bright indeed, but, to be cautious I have suggested 40w output. The two scope photos are when the set-up is off and then when switched on, resonant setting being established. Anyway, here are some photos of the outcome of test 2 and my set-up.

regards

outbobby









Vidura posted this 07 January 2021

Hey ourbobby, What is your frequency? The switching circuit ? You should be careful with the reading of the digital display, Better place a current sensing resistor and a voltage probe on the input. It's a common issue that these digital meters fail at higher frequency. I don't want to say that there is nothing going on, you might have something interesting, just double check the readings with different options. Regards Vidura

Ourbobby posted this 07 January 2021

Hi guys,

             Thanks for the tips. I have tested for the current, but as there is no current flowing, so to speak, with an independent panel meter, prior to the regulator, I am a little confused. So I disconnected the negative feed to the voltage/current regulator. Bright light stays lit!! If total disconnect requires brief contact of negative for globe to light up.

I shall persevere and look for an explanation. Thanks for your assistance

regards

ourbobby





Chris posted this 07 January 2021

Hello OurBobby,

Please Scope the Input Voltage and Current so we can see what is occurring, to help you out. Visit our Measurements Thread for more information. It is extremely simple and will help you to help us to help you.

Its been a long slog, from the start, switching issues, to seeing no sign of any switching at all now.

If you can show switching on the input, then we know where you're heading.

Best Wishes,

   Chris

Ourbobby posted this 15 January 2021

Hi guys,

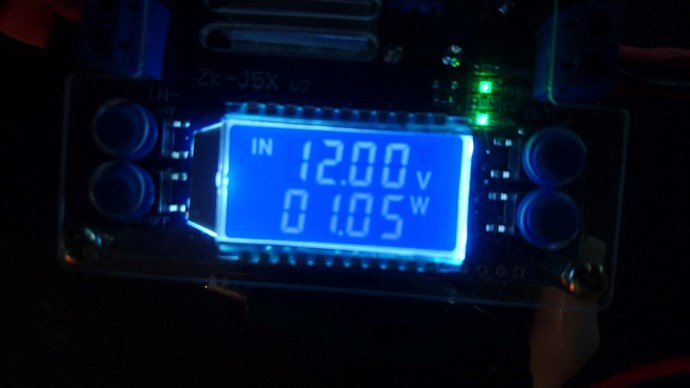

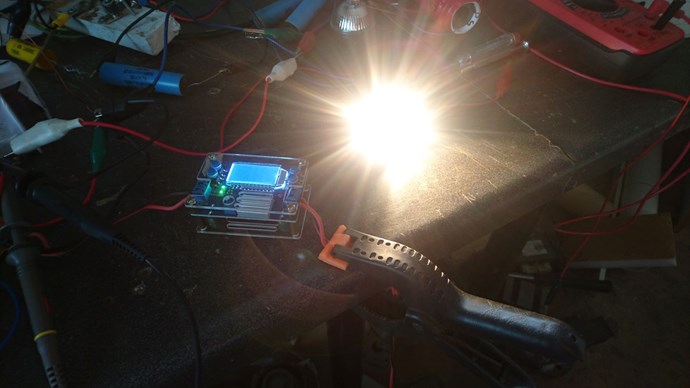

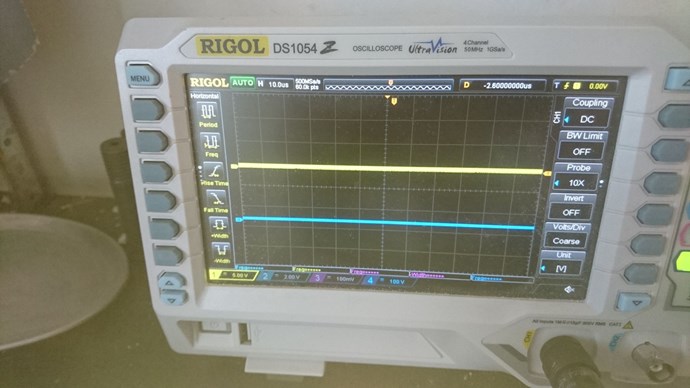

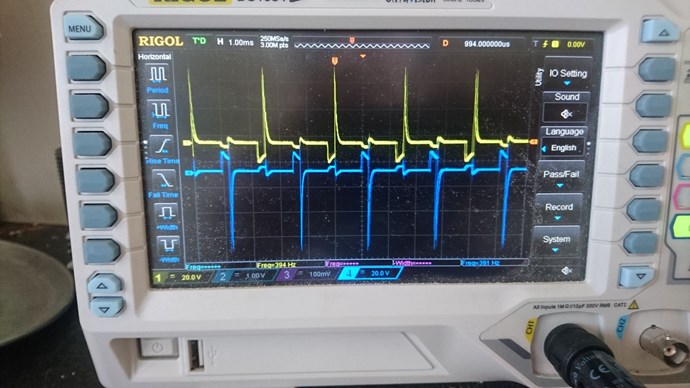

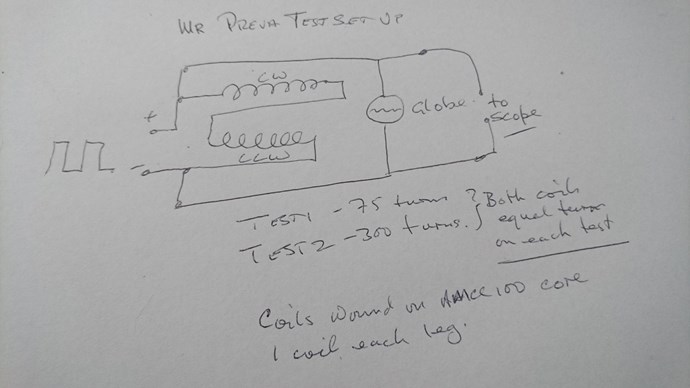

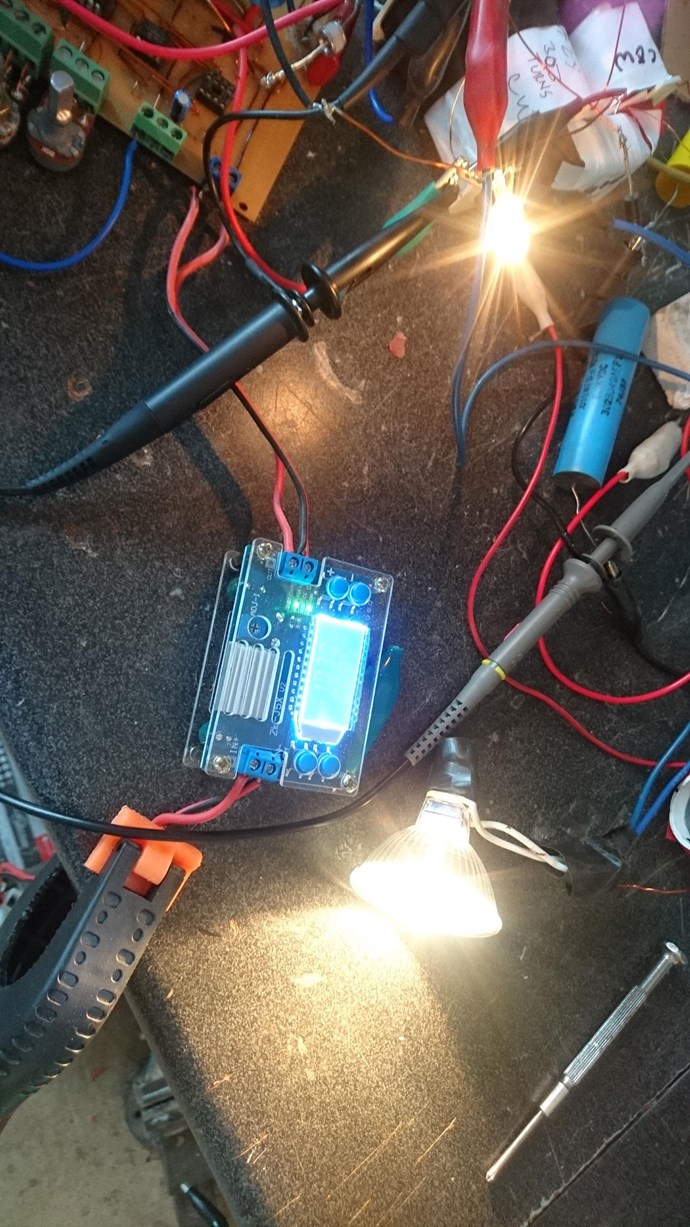

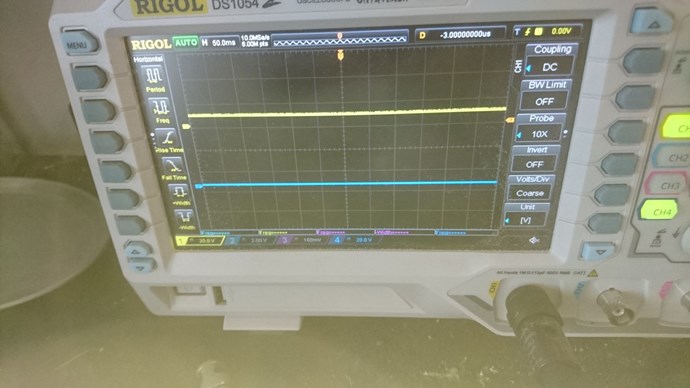

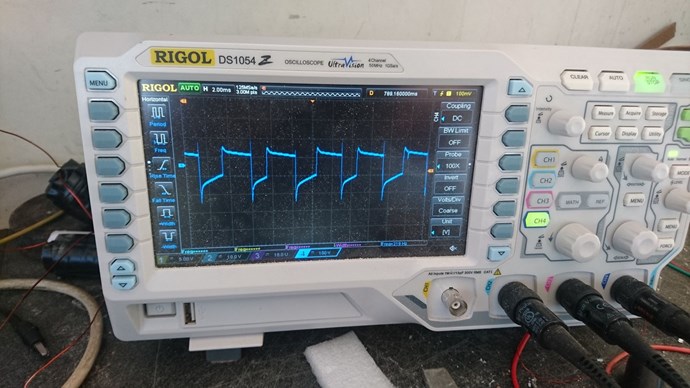

             Could someone tell me if these output wave forms form my twin MrPreva coils are whar I should be aiming for? I have two similarly wound coil pairs, each in a bifilar type configuration. They are alternatively pulsed. they are connected only with flux and are mounted on an AMCC100 core. At the moment I have them balanced. It is very easy to unbalance them with a change in coil configuration.

regards

ourbobby



  • Liked by
  • Vidura
Vidura posted this 15 January 2021

Hey ourbobby, No, i think there is a switching issue. And the scope is false triggering, as there is a second pulse en between. If correctly triggered you would see an exact mirror image of the other trace. Anyway it is not the wave form you should have. Your switching circuit?? We can't know what you have on your Bench if you don't show information and schematic. Thanks Vidura.

Chris posted this 15 January 2021

Vidura is right, your a long ways off what we are Sharing Ourbobby.

You have read and studied the threads and you know where the threads are. Like everybody else, a reread of the thread is sometimes required! You already know where the threads are to reread.



For us to help someone, that someone needs to be able to help themselves also.

I want to say Ourbobby, if you are posting nonrelated, off topic, work that is showing no progress and in point of fact going backwards, as you have had the right waveforms and clean switching: HERE, then others here will grow tired of trying to help.

I am growing tired of what I do, not enough people have taken this on seriously and to be honest, the cost of running this place is not something I can keep forking out. I believe I have done my bit. I have given millions of people a leg up, but to many are to lazy to take this opportunity and move forward with it. I have given all I have learnt in these pages.

The many, many independent replications should be enough to show others this works! But it appears, its not.

If only a small part of Humanity can Grow and Evolve to work for the Future, then only this small percentage will have the luxury of having a future. The rest have no future if they can not Evolve! It seems some humans are destined to be Bio Drones. NOT ME!

I long for Humanity to Evolve! This planet is a Prison of the Mind for so many! Hundreds of Members here show what can be! EVOLVE, I ask you, like most of the Members Here!

Best Wishes,

   Chris



Ourbobby posted this 15 January 2021

Hi Chris,

               Thank you for your reply. I am sorry that I am unable to proceed forward. It is as frustrating for me as it is for you who fully understands how this topic works. It is unfortunate that on the many times I have tried to replicate the outcomes of the series of videos on non conductive coils, that I have not been able to get the results that you are able to get. Why? There has been no limit to my patience with this topic. I am unfortunately one of those souls that have difficulties with adapting to changes.  I am clearly not seeing the issue here. For me, it needs to be a straight forward do this and then do that. Then I have to spend several months while this procedure is adopted by myself. I hope you are seeing the problem I have here.  As much as this is a clear and obvious topic for yourself, it is not for me. I have the unenviable distinction of often being able to alliterate a topic but unable to physically translate with ease. It is an inherent personality issue. I have become afraid of posting on your site for fear of exactly the response i have gotten from you. I do not criticise you for this. For me to transport myself throughout  your website looking for clues is totally against the ability I have to seek information. The subject just becomes a jumble of competing facts - "me first"!

I shall once again try and start from the beginning. If I cannot get what you are telling me if the holy grail, then I shall give this away. It will be clear that I am unable to accomplish what is, when understood, a simple task. I was hoping that I would have assisted the cause by introducing the topic into the community in a practical manner. Looks like a pipe dream for me.

Thank you for your contribution and I wish you well.

regards

ourbobby



Chris posted this 16 January 2021

Hi Ourbobby,

I understand what you're saying. However, I am not sure you understand my point of view.

I honestly do not think it is too much to ask: "Members here focus on what this Forum is about and aim to further the current Energy Machine Technology I have already shared, and others here have shared."

You had it, you had it working, and you had the Waveform required:

Ref: Ourbobby's success



I have no idea why you're saying you are unable to make this work? Since then, you have posted hundreds of posts completely not relevant?

After all, is this not my job to point out when Members are off topic and off down Rabbit Holes? Some people might appreciate this advice? This Forum is dedicated to Energy Machines and the advancement of these machines to the public.

We do not want posts/threads here that have nothing of Value! Post Etiquette is important to me and to the success of this Forum! We are not like other Forums where we have thousands of Pages of Nothing!

Best Wishes,

   Chris

  • Liked by
  • Jagau
  • cd_sharp
Ourbobby posted this 16 January 2021

Hi Chris,

              I have obviously not understood what I am doing. I will see if I can trace back my steps.

Regards

ourbobby

  • Liked by
  • Chris
  • Vidura
Chris posted this 16 January 2021

Hello Ourbobby,

There you have it! 80 posts on this thread, now 81. This thread started off with the best start, but has now come to a non-event.

All my time I have spend trying to help, and it is entirely wasted. All my posts, all the posts from other Members, have amounted to nothing.

Ourbobby, I am going to put your membership to read-only mode, so you can read and catch up on the threads to gain a further understanding of what it is we are trying to do. When you think you are ready, when you have gained the understanding of what we are doing here, then please PM me and we can discuss setting you back to allow posting again.

To be a Member of this Forum, I expect ALL New Comers to Read and Study to get up to speed on the basics, and to be following the same technology, to gain the understanding, so you can participate here. People that are not willing to get themselves up to speed with what we are doing, are simply wasting Other Members Time and effort.

We will help those willing to help themselves!

We have too much at stake! We can not allow Un-necessary Distraction here.

Please get yourself up to speed, then you are more than welcome to participate here! This goes for ALL New Comers, we expect all Members to have a basic knowledge of what we are doing so you can participate!

Best Wishes,

   Chris

  • Liked by
  • Jagau
