Greywolf47's Clemente Figuera Replication

  • 2.7K Views
  • Last Post 18 April 2022
Greywolf47 posted this 12 December 2020

A different way to wind the coils and their arrangment.

The attached photo of the coil layout is powered from a 12 volt battery which powers a 750 watt inverter giving a 120 volt AC output. This powers a Hammond 1182 L 30 toroidal transformer with a center tap and (2) 30 volt AC outputs. These out puts are180 degrees inverted and are changed to DC voltage at about 12 volts and 4 amps using heavy duty diodes . Each of these powers the primary coils that are bifilar wound with 136 turns of 16 guage magnet wire. Over these primaries is wound the paired output coils that are wound with 900 turns of 22 guage magnet wire. These are wound in series in such a way that their outputs add to give 2 out puts of 200 volts that are 180 degrees inverted. I plan to add about 70 more turns to each secondary coil to give 220 volts to each leg.





When the coils are powered up without a load the the readout of the inverter is zero. When a load of (2) 100 watt light bulbs is added to one of the output coil sets, the wattage on the inverter reads 174 watts. I am still getting additional test equipment to get an exact power reading of what happens with the light bulbs. The secondary paired output coils are wound in the fashion of Don L. Smith's device that is a high frequency device. I am planning to wind one set in the pattern of Chris's paired output coils to see if I can get better output with higher amperage.

Attached Files

Order By: Standard | Newest | Votes
Greywolf47 posted this 19 December 2020

Chris, about 4 days ago, you asked me about the theory of operation for my build out of Clemente Figuera's device. There will be laminated iron core primaries that are bifilar wound but the ends are not connected. Instead each wire is powered with a positive DC pulse at 60 Hz from one direction and pulsing at 60 Hz but phased 180 degrees inverted. The other wire in the coil is charged from the opposite end. This causes a rapid reversal in the magnetic flux and a reversal of polarity. The number of turns of these primaries and guage of wire is tentatively set at 136 turns bifilar wound (272) loops of 16 guage magnet wire. When I get all seven sets of 3 primaries wound, I may need to reduce the number of turns. The secondaries are paired and wound over the primaries with 980 turns of 22 guage magnet wire. Here again this may change to get the correct output voltage. The primaries are charged with 13 volts DC at 4 amps from the output of a Hammond 1182 L 30 toroidal transformer with a center tap. The 30 volts AC from the transformer is changed to DC by the use of a heavy duty diode on each output leg. The current of one output leg is fed into the series of primaries from one end and the other current is fed in from the opposite end of the primary set and 180 degrees inverted. The output from the first primary coil is fed into the adjacent coil in series from the opposite direction as the first coil. When all the primaries have been charged from this current, the inverted charge is entered into the primaries set from the opposite end and paired where the ground wire came out from the first current pulse. This current flow causes the secondaries to be charged in opposite directions so that the pattern of charge is N to S to N to S in one direction for 180 degrees of the sine wave and then all poles reverse when the current comes back in the opposite direction. This pattern should give the same output as a dynamo stator coils of a generator. This will be a single phase output. When this unit is perfected, I anticipate a 3 phase unit to follow.

  • Liked by
  • Augenblick
  • baerndorfer
Greywolf47 posted this 20 December 2020

I have been studying some of Don Smith's videos and at the 2001 symposium he shows a detailed closeup of his high frequency coils that he states that he " took out 2 turns in the middle". That coil is definately a single coil, all turning in the SAME direction. In the center, the wire comes over the top and to the center tap. The other center tap wire goes in at the bottom of the coil to continue the second half of the coil.

Chris posted this 20 December 2020

Hello Greywolf47,

Re your Theory of Operation, I was asking about ensuring Voltage and Current Flow on the Output, as I see nothing on Voltage and Current Flow on the output.

Of course anyone can wind a few coils!

I think ensuring one has a Magnified Output over and above the Input is of course the key and a very specific understanding is required to make this happen! Its not just a case of more turns!

Figuera said study the dynamo, and you are, this is good to see! There is a little more to it, however, a simple Transformer is not Above Unity, he left a very important part out!

Asymmetry of Magnetic Fields is the Key!

If you don't mind me saying, gaining this very important understanding before you spend more money on builds, can be very beneficial, save you a lot of time, money and heart ache!

Best Wishes,

   Chris



  • Liked by
  • cd_sharp
  • Augenblick
Greywolf47 posted this 20 December 2020

The very simple diagram that I posted of a single phase generator clearly shows clockwise and counter clockwise windings in the stator coils with the CCW reversed in direction from the CW coils. This creates the asymmetry you speak of. What I am building is not a transformer, but a true generator that doesn't turn. The opposing bifilar wound primary coils overwound with opposing secondaries wound over them, gives the 1 minus 1 plus one giving voltage and amperage. In TESLA'S patent he shows three ways to do the coil winding. In figure 1 he show a center connection of a coil all wound in the same direction. In figure 2 he shows the bottom half after the ground in the reverse direction. As I understand, this is the way your paired output coils are wound. Then there is a figure 3 drawing where the M coil is full length in a CW direction and then back wound as bifilar wound halfway back with a center ground attached at the reversal. Don Smith said this type of winding gives greater amps.

  • Liked by
  • Augenblick
Chris posted this 20 December 2020

Hello Greywolf47,

I think, from what I see, you're on the right track!

Where do the Amps: 6.24 x 1018 Electrons per second = One Ampere, come from? What's the Source and Catalyst for this Flow?

I don't think I need to ask about Voltage as we all know the difference is Charge Potential between Terminal T1 and T2, this part is simple and obvious.

I only ask, to help, so please don't take this the wrong way.

Best Wishes,

   Chris

  • Liked by
  • Greywolf47
  • Augenblick
Greywolf47 posted this 21 December 2020

My understanding, and this changes quite often, is that the two secondaries that are wound over the bifilar wound primary are wound with the primary CW and one of the secondaries being wound CW. The other of the paired output secondaries is wound CCW. As the primary current is reversed by current from the opposite end of the core, the collapsing field actually is in the same direction as the new current building until maximum current is reached. As I understand, voltage is created on the positive side of the sine wave and amps are generated on the negative part of the sine wave.

  • Liked by
  • Augenblick
Chris posted this 21 December 2020

Hello Greywolf47,

If I may recommend, The Mr Preva Experiment is the best experiment on this forum to show Current Amplification, if you can properly understand this Experiment, then you can properly understand HOW Current is Amplified and Pumped. The Lorentz Force is responsible for Accelerating Charge.

There is a great deal to be learnt, in this very simple, cheap, Experiment! This will save you a massive amount of time!

What is the Source of the Electrons:

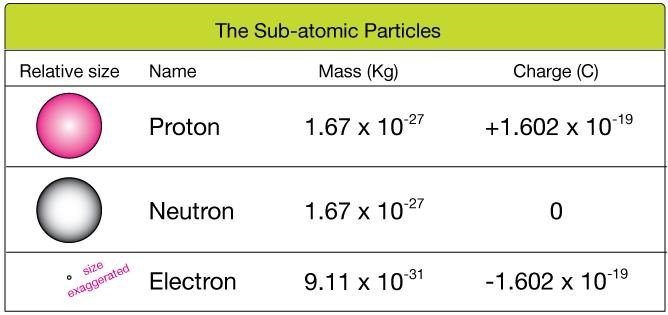

A single Electron, the Copper Atom having 29 Electrons, has a Charge ( e ) of: -1.602176634×10−19 C





A Voltage, of One Volt, which is also equal to One Coulomb, has: 6.24 x 1018 Electrons

One Ampere, is this very same Coulomb, moving past Terminal T1 in one Second, the Flow Rate of this Coulomb.





This is why, we see, Ohms Law, show us: 1 Amp x 1 Volt = 1 Watt. The Watt has Time t associated with it directly, 1 Second. Often the term Watt second is used, but mostly just "Watt".

Each Electron, by definition, comes from the Atom, outer Orbitals, where Electrons on inner Orbitals can be made to move up in orbitals by adding Pressure, adding Energy.

We have many very important pages on this forum, all containing important information like the above! It is worth studding this very important information to understand what your Goal is!

Best Wishes,

   Chris

Greywolf47 posted this 07 January 2022

Just a quick update on my status as well as build status. I have recently moved from Tennessee to Kansas and have moved to a much smaller work space. I have gotten set up and am continuing on my Clemente Figuera replication. Thanks for your patience.

Chris posted this 08 January 2022

Hey Greywolf47,

I hope the move went as well as a move can go! Moving is often difficult.

Best Wishes,

   Chris

  • Liked by
  • Augenblick
scalarpotential posted this 09 February 2022

Hi,

anyone who can explain in short how the Figuera generator works, what the technique is to achieve the claim? I can't find good and clear info on it.

Thanks & Take care

  • Liked by
  • Augenblick
  • Greywolf47
Greywolf47 posted this 13 February 2022

Scalarpotential, I will try to make it short and simple. A normal generator creates an electrical current when a moving magnetic field (field coils) move past the stator coils which are stationary. This movement is accomplished by a prime mover( hydro, motor, or nuclear-powered steam turbine) to provide the force needed to turn the armature containing the field coils. Clemente Figuera sought to negate this prime mover by making ALL parts stationary and ONLY making a variable flux field in the primary windings ( field coils of the moving armature). The secondary windings see this variable flux the same as movement and therefore create a current just the same as a dynamo WITH movement. There are other dynamics involved in the asymmetric winding of the coils that allow for the greater output that the input needed to charge the primary coils. The is also the tank circuit effect with induction coils and capacitors that is also in play. I hope this brief description of the principle of the apparatus is helpful. Greywolf47

Chris posted this 13 February 2022

My Friends,

This Question:

anyone who can explain in short how the Figuera generator works, what the technique is to achieve the claim?



All Members should have a very good base understanding on the answer to this question already!

This is a rather disappointing question to see and read on My Forum!

To Power a Load, one must have:

  • Voltage
  • Current



  1. How is Voltage "Generated"? We have already answered this Question!
  2. How is a Current Pumped? We have already answered this Question!
  3. Where does the Elementary Charge come from? We have already answered this Question!



So, Greywolf47 is correct and accurate in his answer and Clemente Figuera has already told us exactly the same thing:

PRINCIPLE OF THE INVENTION - Watching closely what happens in a Dynamo in motion...



The Electric Generator is an Incomplete Technology! For some 191 Years, Engineers have been too damn DUMB to work out Electromagnetic Induction as it is clearly seen to any Free Mind! Brain Washed Buffoon's desperately try to make a Field of Exploration, specifically the Completion of Electromagnetic Induction, VooDoo, Conspiracy Non-Sense because they are too damn Dumb to see past their Indoctrination, or Pay Check!

The use of the terms: "achieve the claim" is an embarrassment to Science! When Science is so far behind on a 191 Year old Technology! When people in their Back Yards are further ahead than the Scientific Community, and people speak like this, it is lack of Education and Free Will, or a Denial of The Wheel Work of Nature, either by Choice or by Ignorance, of Natures most simple things!

The very definition of Science:

The intellectual and practical activity encompassing the systematic study of the structure and behaviour of the physical and natural world through observation and experiment.



Shows how Incompetent majority of the Community is, and always has been! Words used by The Goon Squad from times past, on another Forum to dissuade Others from following Scientifically, the Exploration that lays ahead!

I am embarrassed to see this string of words on My Forum!

Best Wishes,

   Chris

scalarpotential posted this 15 February 2022

Thanks Greywolf47, very clear explanation. The asymmetry must be the important part. I guess the setup is like this:  two electromagnets connected in series and driving a secondary coil between them.

Chris, lol, it was just a lack of better words, lately mindfog gives me a hard time with words esp english...

To be more specific, where does the analogy of "1+1+(-1)=1" appear in Firguera's transformer so au is allowed?  A dynamo in motion resists the prime mover when power is drawn, a secondary coil creates back mmf resisting the primary mmf when the induced current causes self-induction.

How is Voltage "Generated"? By mag induction, EMF is induced in each winding, the voltage at the terminals is the sum of the EMF in each winding.

How is a Current Pumped? Pushed by the electric field of the induced voltage. The same current also flows through the coil causing self-induction and back mmf.

How does Figuera negate or reverse the effect of back-mmf to the 2 primary coils? I'll think about it myself.

cheers

  • Liked by
  • Augenblick
  • Chris
Chris posted this 15 February 2022

Hi Scalarpotential,

I am pleased to hear:

Chris, lol, it was just a lack of better words, lately mindfog gives me a hard time with words esp english...



I hope you can see my point of view and hope there are no hard feelings! I have seen so many trolls, and when I see some things, I get a little defensive, I am sorry for that! Its for All I do this, and for All I stand to expose what they have done!

Each Copper Atoms have 29 Electrons, and Electrons can be freed by Bucking Magnetic Fields, its Electromagnetic Pressure, that makes them move Up in Orbitals and then become Free, so Electric and Magnetic, being Electromagnetic together.

Many threads here, and many videos I have released explain this very simple, and well known phenomena:



What we do to the Electrons, at a specific time, in a specific State, deterimnes why the Electron moves, and the Electrons Energy State depends on its Orbital, excite the Electrons and they change State:



It is in the Vaelance Band, where Conduction occurs:



So this is where we need to move all the Electrons to! Then we can Accelerate them!, Thus a Current!

A good read of threads here, will give more detailed information.

However, it is just like we were told:

Ere many generations pass, our machinery will be driven by a power obtainable at any point of the universe. This idea is not novel. Men have been led to it long ago go by instinct or reason. It has been expressed in many ways, and in many places, in the history of old and new. We find it in the delightful myth of Antheus, who drives power from the earth; we find it among the subtle speculations of one of your splendid mathematicians, and in many hints and statements of thinkers of the present time. Throughout space there is energy. Is this energy static or kinetic? If static, our hopes are in vain; if kinetic - and this we know it is for certain - then it is a mere question of time when men will succeed in attaching their machinery to the very wheelwork of nature.

Nikola Tesla - Experiments With Alternate Currents Of High Potential And High Frequency (February 1892).



He was so far ahead, he could see!

Our job is to Free and Accelerate the Electrons we have in Copper Wire, or any other Conductive Wire!

Best Wishes,

   Chris

P.S: Another post Deleted by CD_Sharp, in reply to this post Here, Sadly! What an effort they went to in the End!

Rakarskiy posted this 18 April 2022

Good patent, all knots are correct. In fact, followers of Clemente Figuera. Excitation of the primary transformer. Removal as a generator phase. In the figure in the patent, a slice of the plane, you need volume (3D) to read



https://rakatskiy.blogspot.com/2022/04/electric-solid-state-generator.html



Reading the definition:
"Electromagnetic induction is the phenomenon of the occurrence of an electric current, electric field or electric polarization when a magnetic field changes over time or when a material medium moves in a magnetic field."
For us, they mixed: electric current, electric field and polarization - for one reason, which is categorically not true.
On the section of the conductor, when using a magnetic field, a vortex electric field arises, which has an appropriate spin that determines (polarization) or the sign of the potentials at the ends of the conductor.
Current strength is a vortex magnetic field in a conductor. This vortex field appears only when the conductor, with a section of the vortex electric field, is closed into a closed circuit.
It is so obvious that following this paradigm, it is not particularly difficult to understand how the system - a solid-state electromagnetic generator - works. Skills are needed in the design of electromechanical and electric power transformer installations.

There is a war in my country, so I can’t write much, I hope I can finish what I started. All that I have worked out turned out to be the same as Clemente Figuera and this Canadian patent.
