i have to add some additional info to the diode-plug. this is from a document i found online. you can find this doc as attachment - i highly recommend reading it.
...
Here is where the fun starts, as we got RE in OU state. Now what do we do with it? Simply learn to extract it after you learn what it is! E gray defined it as cold electricity. I agree, it knocks standard minds out cold, as it has to be used differently than standard electricity, as load is defined only in amperes and not voltage. Voltage is at 90deg vectorial deviation of the current wave phasor, where current is maximal voltage is 0. Here tuning and RF knowledge becomes a must, as the term “antenna matching the DIPOLE” is in fact true.
Most loads are variable, so we need a system that remains OU while load varies (non-reflective power switching and transformation). The answer is a magnetic amplifier alike tuning (Old technology) or band-pass phase bridge, but that is for Extra class Amateur or FCC 1rst class Engineer (RF engineering). We have Full Value if we use as pulse AB type positive bias energy Pump (Switching) – see further.

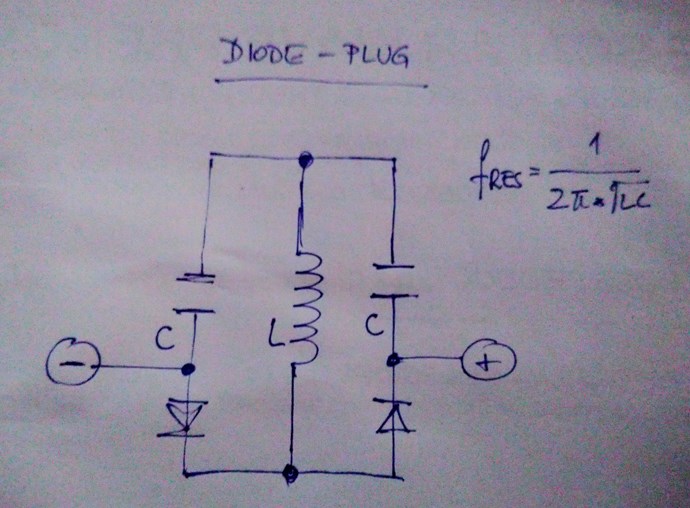

The diode plug does that maintaining the OU condition but transferring the POTENTIAL to a capacitor that is discharged to transfer its POWER to a more standard co-phased PF=1 energy mode. The basic circuit: 2x C transverter circuit; each half equals basic LC at pure resonance, where the capacitor is tailored to the load at a logarithmic path 1.618 over input power raise. The circuit cycles as a constant turn on condition were OU manifests as energy rise within a Node V state (ZPE) resonance.
Energy is extracted by driving the capacitor to a load at the dead time (rest interval) where the other capacitor is being charged. As such we avoid LC field depletion. Discharged into a 0 resistance, the energy becomes infinite (theoretic). And not far from the truth, if this PULSE is used to SATURATE another LC as Electromagnetic Amplifier EASER pump (ON RV and LC Resonant circuits).
Related to Ferro-resonance, any Ferro-resonant transformer can be turned into a transverter diode PLUG, dividing capacitance by 2 and using each HALVE as a + - DC vector source. If SHORTED it just goes RESONANT, no burning in source.
The load R is to acquire the feel of the meaning of AMPERE LOAD, as in the current node the theoretical voltage = 0 as per ZERO POINT theory. C/2 = resonance as R = 0 Ohms; that means the 2 capacitors must be the same voltage but HALF the Farad value (C/2). In split C2X capacitor has the same value but (r/2) I/2 =P in half wave C=1x2/T (T=time) where the signal as AC = 2/120 second length at 1/30s time interval interlaced + - half C tank in opto-electronic trigger one half discharges non reflective to N load as the other logarithmically charges in radiant state in a perpetual "Turn on" cycling state. The capacitor energy is then defined in Joules Volt Ampere second discharge to N load C 2 x T -->N in push pull circuit.
RE-OU-v6_1
