TVSs and other clamping devices

  • 147 Views
  • Last Post 26 May 2020
cd_sharp posted this 26 May 2020

Hey, guys

I need to ask a question to those of you more knowledgeable in electronics. I'm looking at this TVS family datasheet. What are those numbers? Clamping voltages, but what does 10/1000 uS and 8/20 uS time periods mean in this context?

Thank you!

Order By: Standard | Newest | Votes
Chris posted this 26 May 2020

Hey CD,

The info you seek is in the datasheet:



  • @10μs the TVS is 100%, Ipp, conducting.
  • @1000μs the TVS is 50% Ipp

Hope this is what your'e looking for?

Best wishes, stay safe and well,

   Chris

  • Liked by
  • cd_sharp
  • Augenblick
cd_sharp posted this 26 May 2020

Yes, I think so. Thanks, man!

Jagau posted this 26 May 2020

Hi CD

 a note from Vishay

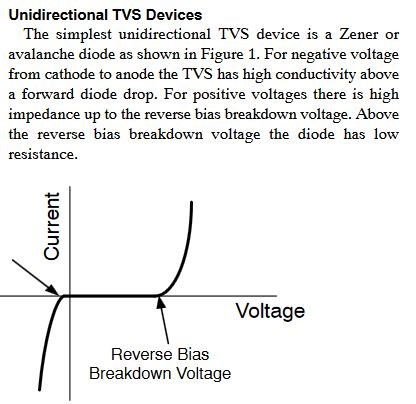

The breakdown voltage is the voltage at which the device goes into avalanche breakdown, and is measured at a specified current on the datasheet. The clamping voltage appears across the TVS at the specified peak pulse current rating

Full explanation in included pdf

Jagau
