# Delayed conduction experiment

• 2.2K Views
• Last Post 03 June 2020
cd_sharp posted this 17 April 2019

Hey, guys

I just thought to see what's the voltage over the additive POC if it's open circuit. This is the schema:

And the results set on x10 (the pink - A and light blue - B are the floating voltages of the ends of the additive POC with respect to ground) and the dark blue (set on 10 V/ division) is the A-B voltage over the coil. We can see it's too much for the Math function on my oscilloscope.

I also notice the timing. It's exactly after the input voltage was turned off.

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

Order By: Standard | Newest | Votes
Chris posted this 17 April 2019

Hey CD,

Excellent very worth while experiments! Very nice to see simple experiments being shared that have great importance!

• Why do the Coils Ring?
• Why such a high Voltage?
• Why do you see the same frequency ringing at switch on as switch off?
• Why no ringing in the middle?
• What's occurring inside the Core, is the Core Ringing like the Coils are?

If Voltage V = 10 Volts and the Resistance R = 10 Ohms then Current I will be 1 Ampere.

If V = 100 Volts then Current I will be 10 Amperes through the same Resistance R.

Be careful of your scope, over voltages can be damaging.

Chris

cd_sharp posted this 18 April 2019

Hey, buddy

I think the additive POC coil rings because there is no impedance on it. I have seen the same ringing in the Akula lantern no 4 when tuned for RLC resonance. My guess is the capacitors in the probes are playing a role here.

It's a high voltage because the collapse of the magnetic field is very sharp.

It's the same frequency at switch on and at switch off because the RLC resonant frequency is constant, no matter what the change in magnetic field there is.

There is no ringing in the middle because the magnetic field enters the last part of the storage phase and it grows slower and slower. The change in time is small.

I think the core is ringing also, it's probably like a resonant cavity which reflects the wave back and forth.

I have the D.U.T. completely floating, the PSU is not grounded, so if I don't touch the open coil, I and the oscilloscope should be safe.

Please let me know any thougths, corrections and ideas. I'll be coming back to close the ends of the additive POC.

Thanks

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

cd_sharp posted this 19 April 2019

Hey, guys

This is the new setup:

I don't know how to add a varistor in Circuit Wizard, so I added D1 and D2 Zener diodes. I'm forcing the additive POC to always conduct such as to add the primary coil by using the D3 diode.

The pink - light blue calculates the dark blue trace. The voltage over the varistor seems to be high enough for conduction, but I did a frequency sweep and nothing noticeable happened.

The varistor is JVR14N470K.

The datasheet shows this graph:

I don't know what I understood wrong and I'm not sure the varistor conducts. Any ideas?

Thanks

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

Chris posted this 19 April 2019

Hey CD,

This is awesome! I am very impressed with this post! Thank You for sharing!

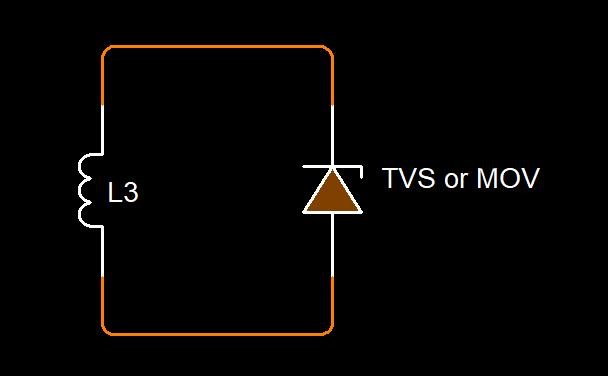

If I may suggest, remove the Diode, on the one Coil L3, make the circuit like this:

The Voltage on L3, when It reaches VC, or Break over Voltage, the device will conduct. If you don't reach the Conduction Voltage on the Coil, the device will not Conduct.

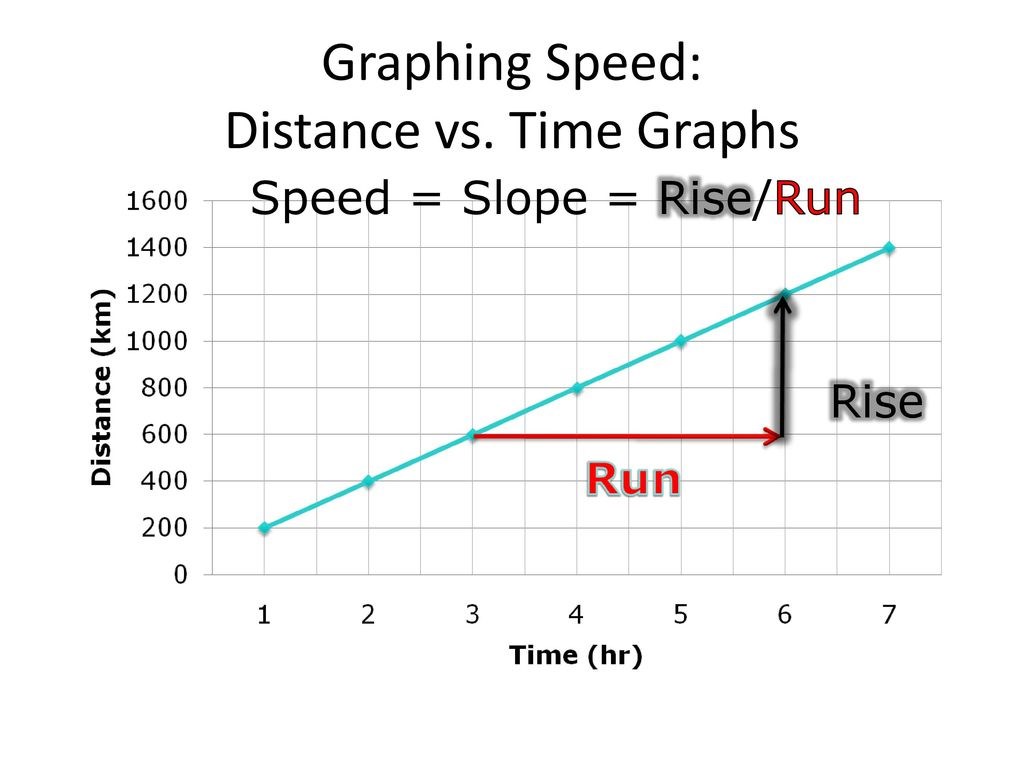

Remember what we talked about, Rise over Run, the Time it takes to Conduct is important:

So, the slope of the Voltage Increase on the Coil L3, from Zero Volts to VC, Conduction Voltage has a Time Constant. This Time Constant is important to the Triggering of Magnetic Resonance, this adjusts the Run Time because the Slope Increases with Frequency.

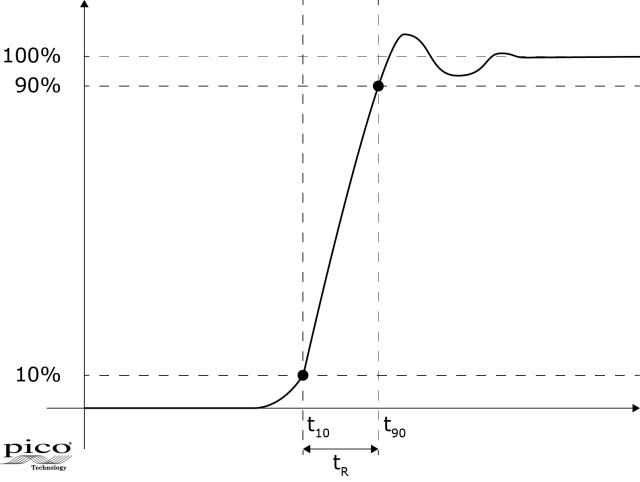

Some may term this Rise Time tR:

This is the Time the Voltage is "Generated", where the Magnetic Field starts Changing.

At Conduction, you have CLOSE to Zero Volts across the Coil L3 / TVS or MOV, because its Conducting, you have Current instead. You already know how to measure Current .

Chris

• Liked by
Vidura posted this 19 April 2019

hey cd , the varistor that you used is 460volts, this might be too high for your setup?

vidura

• Liked by
cd_sharp posted this 19 April 2019

Hey, guys

Let me see if I understood correctly. @Chris, the slope needs to be as steep as possible. So, the maximum magnetic field must be collapsed as fast as possible. I guess this the device needs a bigger bulb.

@Vidura, where did you find that? For example, here I see "Varistor Uac/Udc= 30V/38V, Un= 47V", whatever Udc and Un mean.

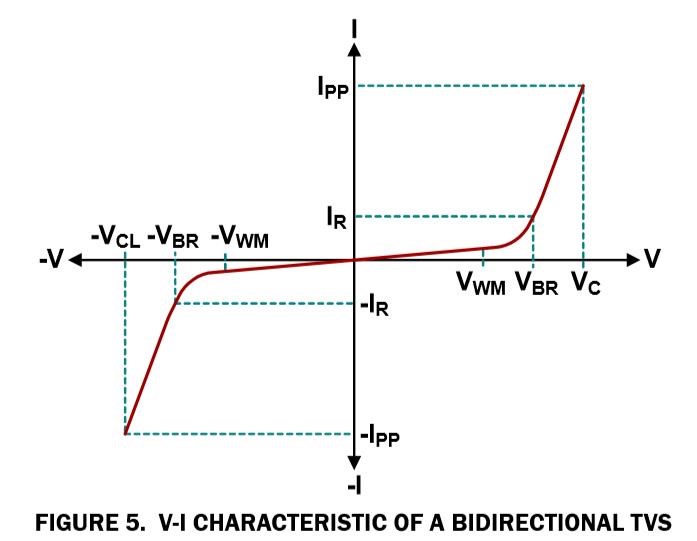

Can you please explain what's the simbol of Vbr and Vc and how else they may be called from the picture below?

Thanks guys, lots of things to learn.

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

• Liked by
Vidura posted this 19 April 2019

Hey cd, I'm sorry I confused the device with the k471 which is for mains voltage with a clamping voltage of 700 volts. Vwm would be the maximum working voltage (used as surge protector), Vbr the break down voltage, and Vc the clamping voltage, when the resistance becomes negligible. Sorry for my mistake.Vidura.

• Liked by
Chris posted this 19 April 2019

Hey CD,

The Frequency needs to be adjusted to find the right Slope.

Slope is Time dependant: the Run variable, because your MOV or TVS is a fixed Voltage: the Rise Variable

So the only thing you can adjust, is Run or Frequency in this case.

If I am reading correctly, your Voltages are too high, get a device that Clamps/Conducts at say 20 - 50 volts. These things are cheap.

WOW, those datasheets are the worst I have ever read!

Chris

• Liked by
cd_sharp posted this 20 April 2019

Hey, Chris,

You're right. I can see here the clamping voltage is 93V. I'll try another model.

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

• Liked by
Vidura posted this 20 April 2019

@CD.

To take into account: the MOV is basically a RESISTOR, a LOAD, although varying on applied voltage. In the case of the device that you used it means that at the nominal voltage only1mA of current will flow, gradually increasing until reaching the clamping voltage. in between this values the device will dissipate as any resistor. If you need a more abrupt switching the TVS diode or a switch might be better.

vidura

• Liked by
cd_sharp posted this 24 April 2019

Hey, guys

I received the TVS diodes. I tried all of them on this circuit:

Here are the results using BZW 06-13 B , duty cycle 16%, frequency 250c/s:

Yellow is the input gate trace, dark blue is the voltage over the TVS.

From what I can tell, I reaches the Vbr during the input pulse, but never Vc. I did a full frequency sweep.

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

• Liked by
cd_sharp posted this 13 July 2019

Guys,

I took some time to make some really good bobbins and wire the coils separately on my new AMCC-200 core. I tried this experiment:

I noticed something that I have seen previously in other experiments but I didn't give much attention. Here it is:

Pink is voltage across the TVS, light blue is the current through L2, dark blue is the current through L3 and yellow is the FG signal.

What exactly is going on?

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

Chris posted this 14 July 2019

Hey CD,

Awesome work!

You are so close that its not funny! This is the start of the Slapping together of the Magnetic Fields on the Partnered Output Coils!

Keep going on this! This is awesome progress! Remember, the Output characteristics need to be Sawtooth Waves:

With a low Input Duty Cycle and long Off Time, the Cycle will Pump Electrons through the Insulated Copper Coils.

Suggestion:

• Lower your Input Coil Turns and use thicker wire.

This will give you a Faster Rise Time, so the TVS will conduct faster, now take off a few turns at a time and try it.

Awesome Work CD! You're nearly there!.

Chris

• Liked by
Jagau posted this 14 July 2019

hi CD

very good experiment

thank for sharing, very interesting

Jagau

• Liked by
cd_sharp posted this 14 July 2019

Hey, guys,

I forgot to mention, all the coils are wound with 0.6mm diameter (AWG #22) enameled copper wire.

I'll make L1 with 2 mm diameter (AWG #12) copper wire.

I'll keep you posted,

Thanks, my friends

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

• Liked by
Chris posted this 14 July 2019

Hey CD,

Your Coils appear to be Bucking, from the Noise we can hear in the Video, and this is good! Very Good! From what I can tell on the Scope it also appears this is the case. So, you have the Delayed Conduction working!

Well Done!

I hope all Readers pay very special attention to this and learn from it!

As you already know, Frequency and Duty Cycle play a Role!

Increasing the Frequency and Decreasing the Duty Cycle may be of benefit, or even decreasing the Frequency and keeping the same Duty Cycle... This is part of the Adjustments needed to get to the end Goal.

Time is the Coils Natural Response:

Voltage is the Amplitude gained when the Electromagnetic Waves Slap together:

The Coils also have peak Magnetic Fields, both Opposing. If you study the Ocean Waves and what the cause is, in how the Amplitudes become much Higher that what Science currently predicts, and apply this same cause to your Coils, then you will have a Running Functioning Machine as I have described.

Well done CD, awesome demonstration of the Delayed Conduction Effect!

Chris

• Liked by
patrick1 posted this 15 July 2019

Hi Sharp , what is the akula scope shots you refer too above ?. - also did you figure out if you can stop your coils ringing like akulas do unloaded ?, or if that is even the right thing too do, -  ?.  - i have not managed too see much of his work  and i dont know how honest it is.  - hopfuil of course.

also i would like too say, - i only understand a little of what your doing, but fundermentally one thing stands out too me, - all of your output power is in phase with the input...  and im doing the opposite ;-D.....   im like* cmon boys get your sht together*..   giggles.

pls let me know what you think about this ringing, - because i have found this kind of interference creates much loading on the input power., without proportional benifet, - although i have only just started exploring this as a possible problem... like yesterday !!

• Liked by
cd_sharp posted this 15 July 2019

Hey, Patrick

what is the akula scope shots you refer too above ?

also did you figure out if you can stop your coils ringing like akulas do unloaded ?

You can minimize the ringing by avoiding to overlap the coils.

if that is even the right thing too do, - ?

I can't tell, I did not completely replicate lantern no 4. It's using almost 0 power, but it's not self running.

I'm interested in studying devices showing greater output power these days. Ecologically speaking, time is running out.

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

Chris posted this 18 July 2019

Hey CD,

Thanks for sharing!

Inter-Winding Capacitance in combination with the Inductance of the Coils is the cause of the Ringing. If the Capacitance or the Inductance changes, then the Frequency will also change. A Transformer under load has a different Inductance then if it has no load.

Good experiment!

Chris

• Liked by
cd_sharp posted this 18 July 2019

Hey, guys

Let's examine in more detail the reason why the DC power supply was doing so much noise.

Looks like the Mr Preva Experiment, we see the phase shifting. We also see the big variation in input current and we see that the current measured on R1 is much bigger than the current measured over R2.

This is also happening when the MOSFET is off (at least it should be). Why does that pulse show up when it does? It looks like it's the effect of delayed conduction at the specific frequency of 9 c/s.

The power supply is simply shifting some relays (probably) inside. It does that when jumping certain current values up or down. That's what's causing the noise.

There is no reverse current against the power supply as I thought initially. I used a diode to prove it.

Lots of stuff learnt today. Thanks for the reading!

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

• Liked by
Chris posted this 18 July 2019

Hey CD,

I think a Diode may not be a 100% guarantee for Negative Currents .

I should note: You have the "Slapping together of the Waveforms" I have described by the sounds of it, and from what I have seen!

A sweep of Frequency may yield a find or two!

Chris

• Liked by
cd_sharp posted this 25 July 2019

Hey, guys,

This is my latest progress

I noticed that as I increase the frequency, the duty cycle needs to be increased at a rate of about 0.5% per Hz. I did all this without increasing the input voltage.

But, around 20 Hz ( or c/s ), this does not hold any more. The coils try to slap each other but stop shortly after. So I decided to increase the input voltage and they are back in the "slapping" mode.

Greater frequencies require greater voltage, so I'm thinking there is something wrong with my coils.

Thanks, my friends

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

Wistiti posted this 25 July 2019

Cd_sharp, you are a very talented experimenter!!!!

Thank you for sharing.

• Liked by
Chris posted this 25 July 2019

CD awesome work!

Youre getting closer all the time! We need to turn this:

Into this:

In your experiment, I think, from what I can see, we are on the other, Inductive Collapse side of the Input?

Our Input needs to be assisted by the very same effect you are showing. So all one Input assisted Pulse, no diodes.

Chris

• Liked by
cd_sharp posted this 26 July 2019

Hey, my friends

In your experiment, I think, from what I can see, we are on the other, Inductive Collapse side of the Input?

Yes, yellow is the gate signal, dark blue is the voltage over the TVS, light blue is the current through the TVS and pink is the voltage over the bulb (output voltage).

I see what you mean, man.

EDIT: I fixed the circuit schema above, it used to show a cap in the input circuit which was not there. Also, it contained 2 light blue probes. I guess the end of the day is not a good time to make a circuit schema ..

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

• Liked by
Chris posted this 26 July 2019

Hey CD,

Like my dear friend Wistiti said:

Cd_sharp, you are a very talented experimenter!!!!
Thank you for sharing.

Excellent work!

Chris

• Liked by
Chris posted this 27 July 2019

Hey CD,

I shared this circuit here:

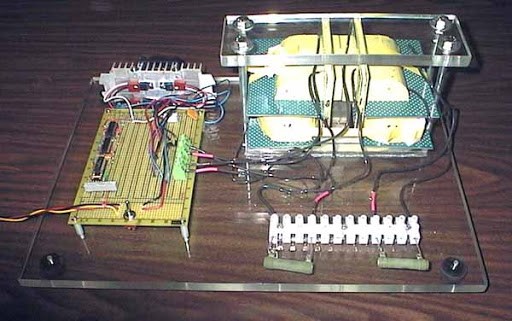

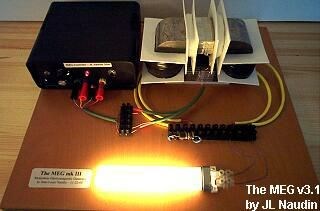

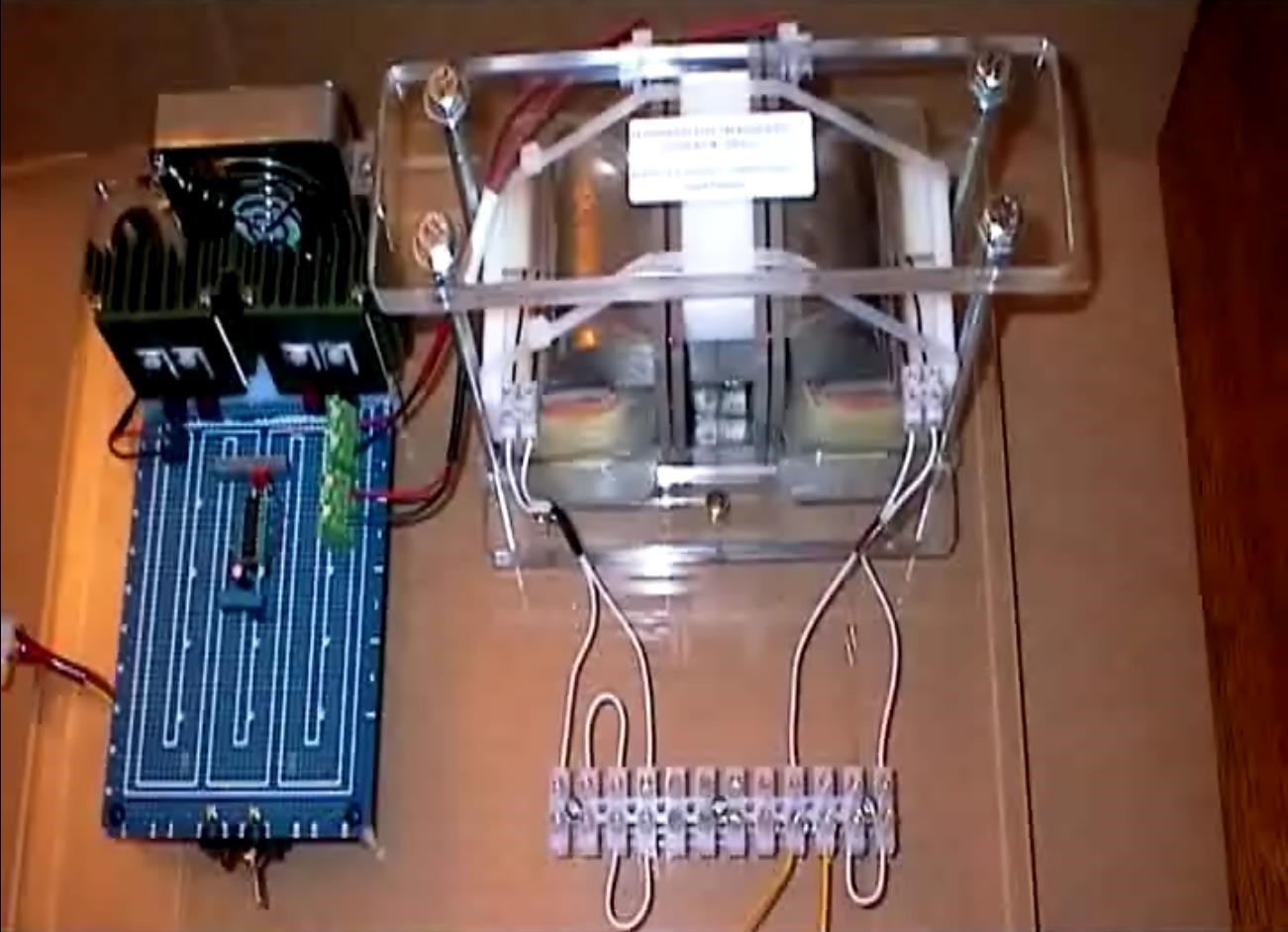

### The MEG Demo Circuit

Where D2 represents a Bi-Directional TVS.

The basic idea there, find where L3 assists the input, L1 or L2, but opposes L4.

Chris

• Liked by
cd_sharp posted this 29 August 2019

Hey guys

This is my latest progress.

Beware, the order of the coils is so important. If POCTWO would stay at the bottom, the TVS would almost never conduct (light blue current).

Notice how POCONE (yellow) current is reinforced by the light blue current and the result is visible on the filament of the bulb.

Next, I'm thinking to put some muscle into it, to add some more turns to the POCs. Stay tuned...

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

Chris posted this 29 August 2019

Hey CD,

Awesome work!

The Rate at which the Fields Slap Together is important - Time Rate of Change of the Magnetic Fields creates a Voltage.

Input Coil needs few turns, Rise Time, an adjustment for optimum efficiency both Frequency and Duty Cycle.

Yes, also adding more turns to the POC's will help, but not too many.

Partnered Output Coils will show the Magnetic Interactions required when the right. Discussed prior in PM.

Of course, all to achieve the above, but, Magnetically, or Electrodynamically!

Just do a little bit at a time... So you know what changes: Improve / deteriorate the effects...

You are exactly on track!

Chris

Chris posted this 04 September 2019

Hey CD,

I wanted to say again, you're exactly on track here, everything is right, you just need a bit more fiddling.

You have everything correct, the Polarity, the equation: 1 + -1 + 1 = 1, you have Action, Reaction and Counter-Reaction, Input is opposed but then reinforced!

Now, keep the same config, drop the input Coil down to 7 Turns, give the input Frequency say 20KHz but at 5% Duty Cycle, this will help, then just tune, adjust to find the right Frequency and Duty Cycle for your Coils.

Where the Resonance needs to be found: ( Covered Here )

In the Red Rectangle is the point at where your Input is Exciting your Partnered Output Coils at their resonant point, same as The Mr Preva Experiment, then switch off, the rest is pure Energy Pumping, Excess Energy "Generation".

Chris

cd_sharp posted this 11 October 2019

Hey, guys

Another try at this with more "muscles", with L1 wound using a lot thicker wire than the POCs:

The POCs still refuse to go into magnetic resonance.

I have a theory in mind, the magnetic field density of L1 is very important. I'll test it, but I'll have to make another spool.

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

Chris posted this 11 October 2019

Hey CD,

Awesome work!

If I may recommend, an approach as Tinman displayed:

This may help some to get the Coils doing the right thing. You had the exact operation in your last set of experiments, only needed to increase the Output Voltage.

I have a video coming, and along with my last videos, they may help some more.

Chris

cd_sharp posted this 12 October 2019

Hey, man

I still have currents falling to zero together. They oppose, but they don't want to "talk" to each other for too long.

I have current at about 0.075V / 0.1ohms = 0.75A on the pink trace.

I double checked again the right hand rule.

I swept through 0-200KHz in 999 seconds cycle (about 16 minutes each) at 5%, 10%, 20% and 30% duty cycles.

I saw no light although I almost fell asleep once .

I'll give this some thought.

Thanks

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

• Liked by
Vidura posted this 12 October 2019

Hey Cd Are you using a unidirectional tvs diode ? This could prevent the coils to resonate,try bidirectional or MOV Regards Vidura

cd_sharp posted this 12 October 2019

Hey, Vidura

It's a bidirectional TVS.

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

• Liked by
Chris posted this 12 October 2019

Hey CD,

L2 and L3 are both seeing L1 as the Primary, the Electromagnetic Induction that occurs in L3, must be a result of L2, not L1.

You can try many things,

• Taking more time and finding where the Magnetic Field Propagation on Your Core creates this effect.
• Spacing the Coils at a distance, and gaping the Core that L1 occupies with 2 - 5 mm spacers from L2 and 3.
• Adding a small capacitance to L2.
• Dropping the Turns on one Coil. The Change in Current Induces a Voltage, the Voltage defines the Current: I = V / R

Many other things can be attempted. It is a case of fiddling with your DUT until you find the conditions that your DUT will let you bring about the effects desired.

Again, the Primary Coil only needs a few turns, 10 turns or so on a machine like yours. 200 turns on your primary is not ideal. This is something I have pointed out many times now.

Chris

cd_sharp posted this 13 October 2019

Hey, man

Thanks for the advice.

L2 and L3 are both seeing L1 as the Primary, the Electromagnetic Induction that occurs in L3, must be a result of L2, not L1.

I agree, but how can you tell that is the case. I see the dark blue (L2) falling and at the same time pink (L3) rising. Isn't that a proof of EM induction between L2 and L3?

That page from Naudin is excellent.

I didn't put any label on L1, but it's 25-30 turns, 2 mm diameter. That's why it looks like 200 turns.

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

Chris posted this 13 October 2019

Hey CD,

Re:

I agree, but how can you tell that is the case.

A little bit of Guess work to be honest. From what I can see the Phase of the Current is the same, not 180 degrees out of phase, so Magnetic Fields, again from what I can see, are not opposing. Even though you have checked the Right Hand Grip Rule, the Time the Magnetic Fields take to fall is too short.

The Magnetic Fields, when opposing will take longer to decay.

There is a problem there, somewhere, and the Fields are exactly in phase. That's another give away, exactly in phase and also Amplitude.

Just trying to help, but Scope Earths would be best at the same point, so as to avoid Ground Loops. Not sure if this is the case in your setup, but looks like they are on totally different nodes? I might be wrong, sorry if I am, and please ignore if I am wrong!

Chris

cd_sharp posted this 07 May 2020

Hey, guys,

I did my first try to delay conduct using Netduino, by adjusting manually. I'm not using any current sensing via I2C.

I'm not impressed by the result, although I wrote some code to take care of execution cycles. I'll think about what to do to improve, but please note the current spikes on the POCs and the trace dancing.

Thank you!

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

Chris posted this 07 May 2020

Hey CD,

As always, great work, Thank You for sharing!

The smallest amount of adjustment can make all the difference, check this link: here, for more info.

Best wishes,

Chris

cd_sharp posted this 20 May 2020

Hey, guys

Some further studying of the non-inductive coil experiment using 4 TVS-s in parallel:

This is the basic schema:

One of the branches uses 4 TVSs in parallel, tied in series with the diode.

Thanks for watching!

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

Chris posted this 20 May 2020

Hey CD,

There is a lot going on here! You have done an Experiment that has many Cause and Effect situations occurring.

Taking into account the Input Coil changing several parameters, we see a change in the Coupling Coefficient and also the Propagation Delay of the Core.

Many things to think about here, many!

Great experiment, great thinking and Thanks for Sharing again!

Chris

cd_sharp posted this 20 May 2020

Hey, man

I see, I'd better change one thing at a time. Very good advice!

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

cd_sharp posted this 21 May 2020

Hey, guys

An older idea, not mine, but the result is another lesson. First a fast diode and at the end I change it to a slow one. The conclusion is easy and expected by anyone having read the materials:

Thanks for watching!

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

cd_sharp posted this 22 May 2020

Hey, guys

One of the diodes in this setup is strictly for switching. Is it a good idea to use it in series with another switch, like a TVS? This is the experiment which leads me to a conclusion:

Thanks for watching!

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

cd_sharp posted this 24 May 2020

Hey, guys

I thought to see how much time L1 needs to bring POC1 to clamping voltage depending on the number of turns. These experiments give me an idea:

vs

The experiments were made with the same input parameters (frequency, duty, voltage).

Thank you!

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

Chris posted this 24 May 2020

Hey CD,

Nice work! V vs I is important with TVS's. The Time to switch is a bit difference there considering!

Voltage, and how quickly the Voltage can be achieved, is a function of what? Current is a function of the Impedance, but where does the Impedance Change?

Best wishes,

Chris

cd_sharp posted this 25 May 2020

Hey, man

Voltage, and how quickly the Voltage can be achieved, is a function of what?

It's a function of Faraday's law of induction, change in current / magnetic field during time period.

Current is a function of the Impedance, but where does the Impedance Change?

In our case, the impedance changes when we have conduction through the load.

Best wishes

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

cd_sharp posted this 30 May 2020

Hey, guys,

Let's see what else I experimented trying to control the clamping time:

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

cd_sharp posted this 31 May 2020

Hey, guys

One more step towards a coherent conclusion:

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

Chris posted this 31 May 2020

Hey CD,

Delayed Conduction was a technique I first observed on The MEG:

JLN, Jean Louis Naudin's MEG here:

Where you see the Carbon Resistor, this is what JLN had to say about his MEG Replication:

a "conditionned" RLoad(100 Kohms, non inductive carbon, 5Watts) or a MOV (Metal Oxide Varistor) is REQUIRED for getting the output datas measured above,

Where you see the Carbon Resistor, that's the placement of the TVS The MEG Team used, you can observe the statements here:

The Timing of the Coils Slapping together , exactly the same as I have shown you, is determined by the TVS, or the Conditioned R Load, which by the way, you will have a lot of trouble with. Very hard to get this Carbon Resistor to Conduct at a certain Voltage.

Of course, the rate at which the Conduction occurs and the Tension on the opposite Coil, is very important, a combination of a series of events timed to achieve a goal. Maximise the Voltage on the Coils.

Of course the Video Above mimicking the processes.

NOTE: You still need the same Waveform I have shown, the one you had before. The lone extended one, where we get, or can get Above Unity Numbers.

Best wishes, stay safe and well,

Chris

cd_sharp posted this 01 June 2020

Hey, Chris, yes, all very good point.

I just need to do a complete set of tests to understand everything that is going on. Another thing I noticed:

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

cd_sharp posted this 02 June 2020

Hey, guys

I noticed that TVSs posses a pretty good capacitance and they modify the RLC resonant frequency of POC1. This can be used:

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

cd_sharp posted this 03 June 2020

Hey, guys

The goal of the delayed conduction is to get the voltage up. Basically, the more we delay the current through POC1 during the on-time, it will conduct at a greater voltage, so the ramp up of the POC1 current would be steeper. For that I got rid of one diode and I'm using 4 TVSs in parallel.

I noticed there is some current flowing through POC1, although the TVSs did not clamp yet. I believe this current flow is not beneficial at all. It opposes L1 current, increasing the impedance seen by L1. This is one of the undesired phenomenons:

More proof is here, using a cap in parallel with the TVSs causes most of the current to flow through the cap:

Thanks, guys!

"It's just the knowledge of the coils and how they interact with each other" (Steven Mark)

Members Online:
Since Nov 27 2018
Our Above Unity Machines:

More than anything else, your contributions to this forum are most important! We are trying to actively get all visitors involved, but we do only have a few main contributors, which are very much appreciated! If you would like to see more pages with more detailed experiments and answers, perhaps a contribution of another type maybe possible:

Donate (PayPal)

The content I am sharing is not only unique, but is changing the world as we know it! Please Support Us!

Donate (Patreon)

Thank You So Much!

Start Here:
Weeks High Earners:
The great Nikola Tesla:

Ere many generations pass, our machinery will be driven by a power obtainable at any point of the universe. This idea is not novel. Men have been led to it long ago go by instinct or reason. It has been expressed in many ways, and in many places, in the history of old and new. We find it in the delightful myth of Antheus, who drives power from the earth; we find it among the subtle speculations of one of your splendid mathematicians, and in many hints and statements of thinkers of the present time. Throughout space there is energy. Is this energy static or kinetic? If static, our hopes are in vain; if kinetic - and this we know it is for certain - then it is a mere question of time when men will succeed in attaching their machinery to the very wheelwork of nature.

Experiments With Alternate Currents Of High Potential And High Frequency (February 1892).
